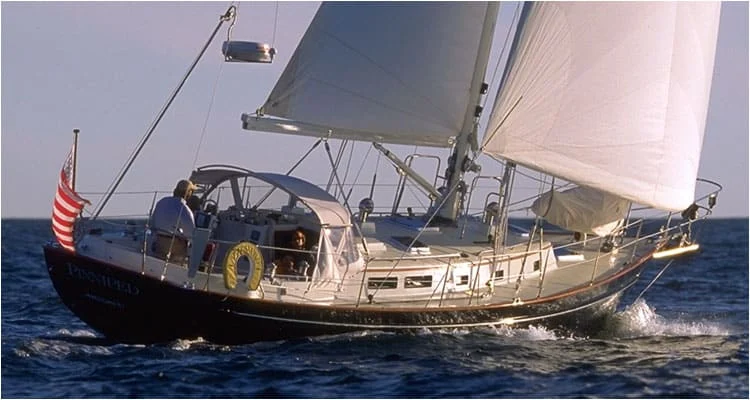

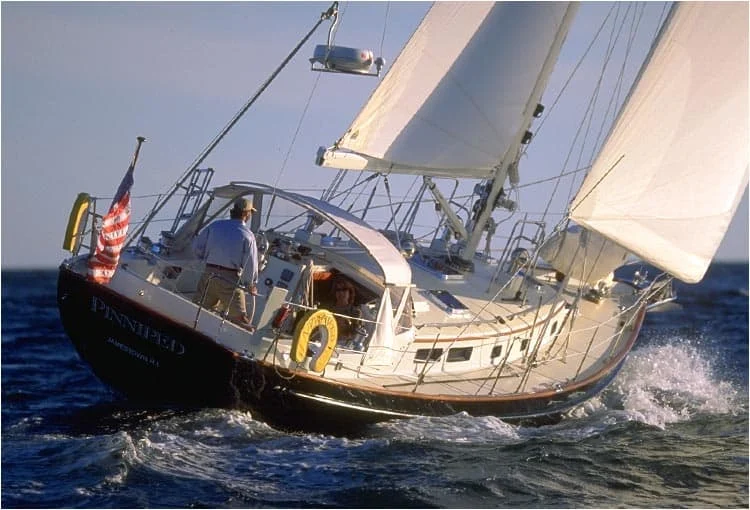

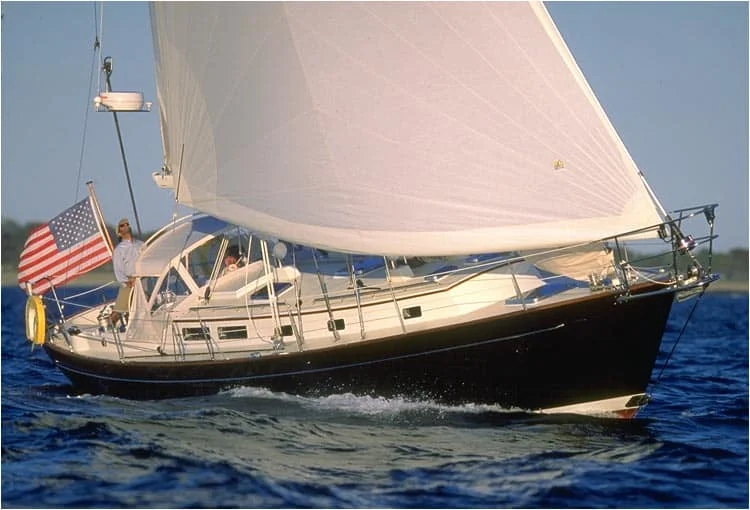

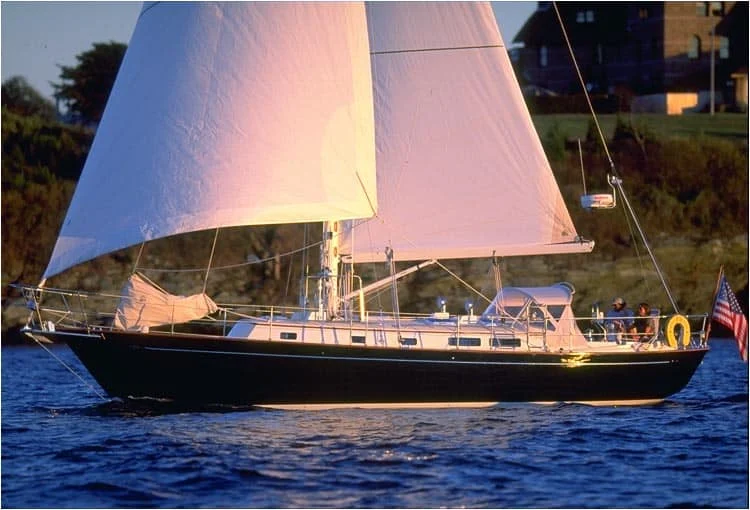

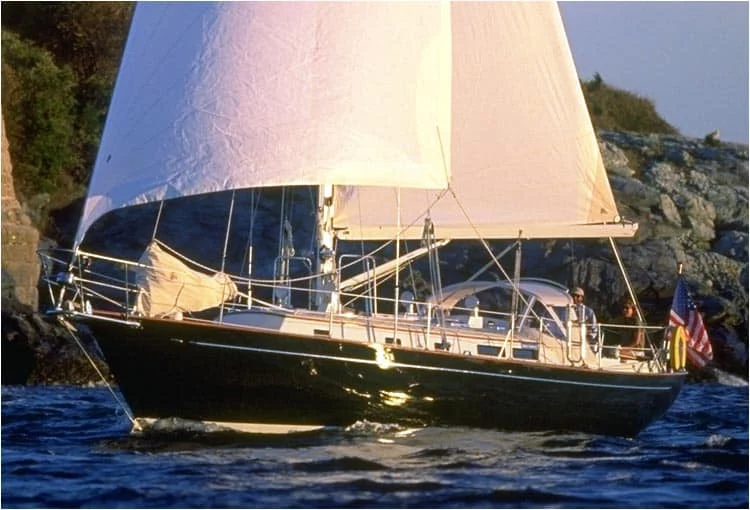

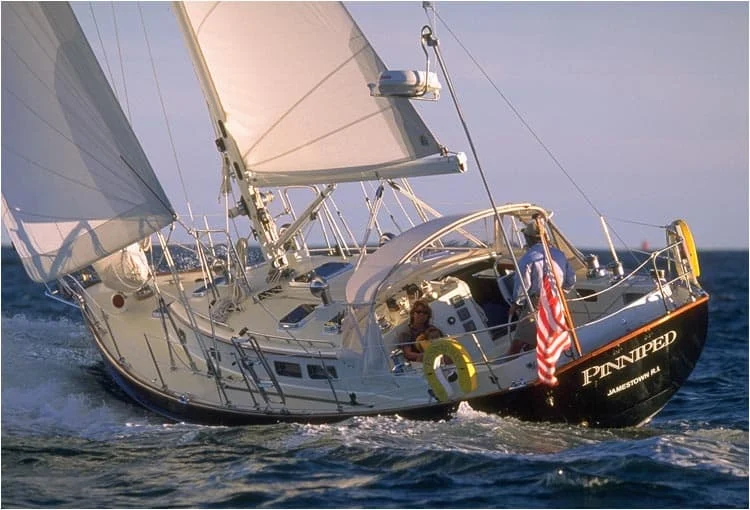

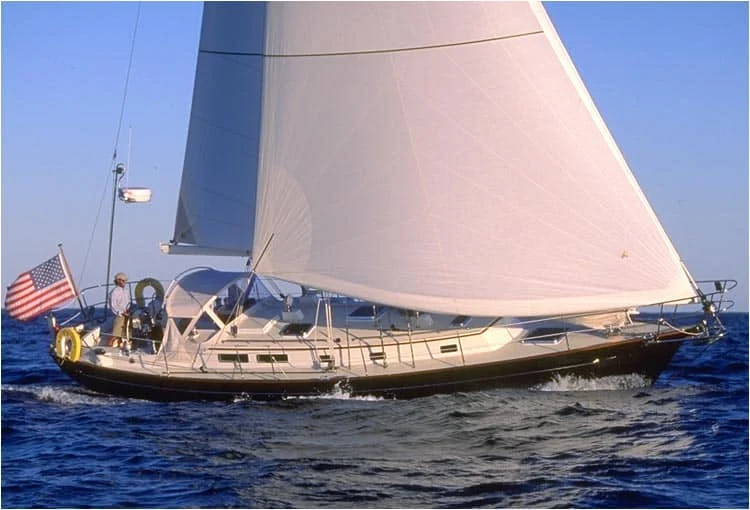

42 Cruising Sloop

STRUCTURE

• Fibreglass roving & unidirectional reinforcements over foam floors with limber holes
• Deck flange bolted & bonded to hull flange

HULL CONSTRUCTION

• Vinylester resin throughout
• Single piece Core-Cell cored fibreglass molding
• Extra reinforcing as required
• Core phased out in way of all thru-hulls, struts, shaft logs, rudder port & centre line
• Molded keel sump with increased laminate
• Awlgrip painted topsides & boot stripe
• Epoxy bottom barrier coat
• Owner specified bottom paint
• Awlgrip painted rum strake to match hull with stainless steel striker
• Externally fastened 8,000 lb. cast lead ballast

DECK CONSTRUCTION

• Single piece Core-Cell cored fibreglass molding with non-skid pattern on all working surfaces
• Core phased out in way of all deck fittings
• Awlgrip painted deck & non-skid
• Fibreglass storage boxes in cockpit coaming

SPARS & RIGGING

• Awlgrip aluminium mast & boom
• Double spreader cutter rig with removable inner forestay & runners
• 4 internal halyards, internal outhaul & reef lines
• Solid boom vang
• Harken furling
• All standing rigging Navtec solid rod except
• Wire staysail stay
• All turnbuckles Navtec with toggles at deck
• Navtec rod bobstay
• All rope running rigging, colour coded
• 2 mainsheets
• 2 genoa sheets
• 1 main halyard with shackle
• 2 genoa halyards with swivel snap shackle
• 1 staysail halyard with swivel snap shackle
• 2 staysail sheets
• 2 running backstay sheets with blocks
• 6 mooring lines
• 6 fenders
• Dodger with stainless steel frame

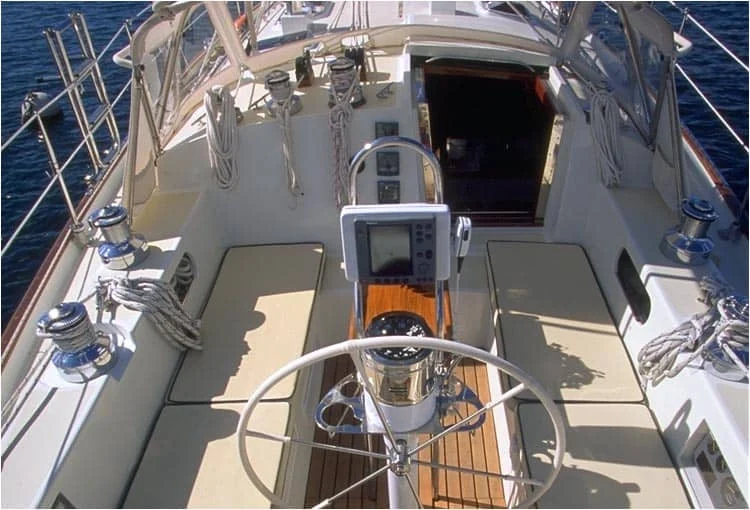

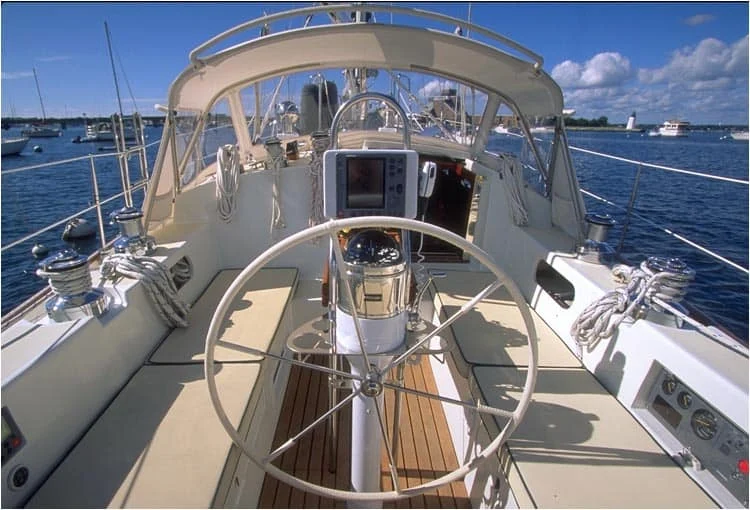

STEERING

• Fibreglass foam filled rudder with stainless steel shaft and stiffeners
• Edson # 400S pedestal steering
• 36″ diameter stainless steel wheel with leather wrapping
• Steering brake and stainless steel pedestal guard
• 6″ Ritchie compass with stainless steel cover
• Stainless steel emergency tiller

ENGINE & DRIVE SYSTEM

• Yanmar 4JH2E-50hp, 2:1 V drive
• 60 US Gallon aluminium fuel tank
• Racor fuel filter
• 17″ feathering propeller
• Engine room sound insulation
• Blower engine room ventilation
• Hinged engine access
• Stainless steel thru transom exhaust
• Coast guard approved exhaust hoses
• Waterlift muffler

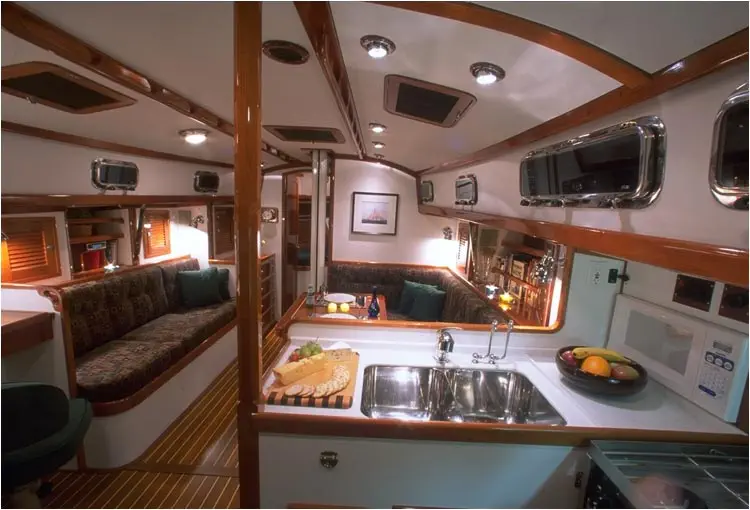

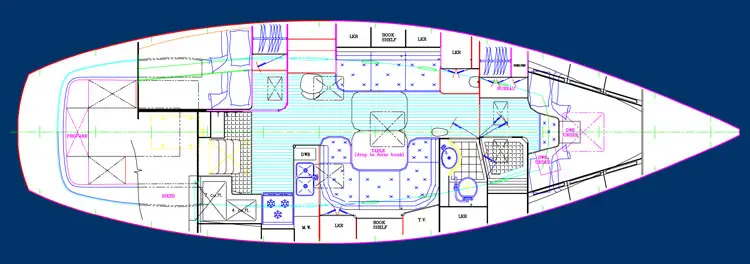

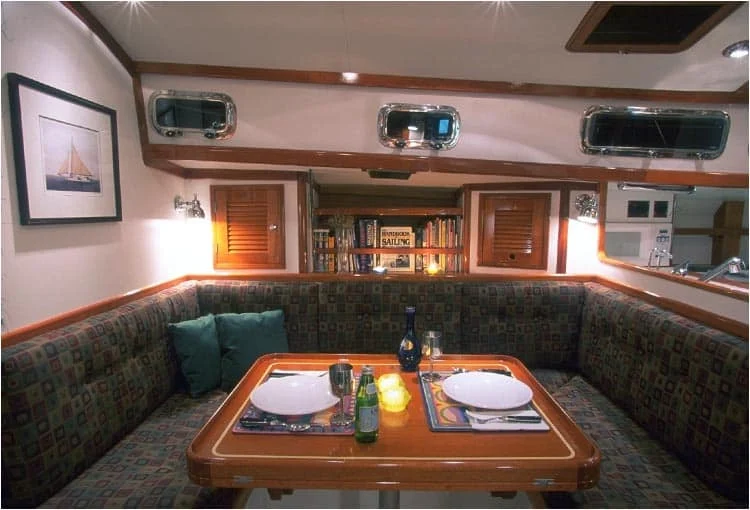

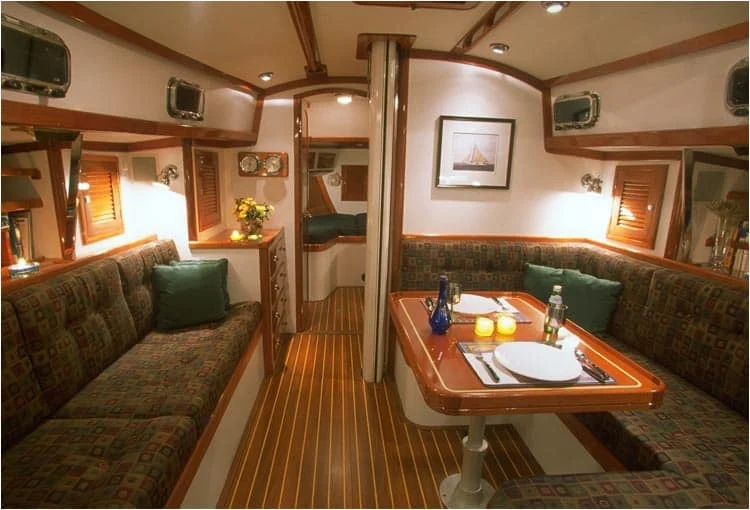

ACCOMMODATIONS

• Standard finish white bulkheads with satin varnish trim & doors
• All interior joiner work & trim satin varnished
• Varnished teak & holly sole
• Removable overhead panels finished in satin white
• Shaped varnished valence hand hold at house side
• 5″ foam upholstered cushions in main cabin & 6″ foam in staterooms
• All latches, hinges, catches & pulls brass or bright chrome or stainless steel
• Corian counter tops in galley and heads

REFRIGERATION

• Engine driven cold plate system with 2 plates
• Molded fibreglass box with 4″ foam insulation
• Separate freezer & refrigerator with top & front access

PLUMBING

• Pressure water with hot & cold faucets in heads & galley
• Water heater, 6 gallon, 110 V & engine heat exchanger
• Foot pumps for fresh & salt water in galley
• 2 stainless steel water tanks, 75 U.S. gallons per, with level gauges
• Shower with fibreglass pan with sump pump & extending shower head
• Deep double stainless steel sink in galley
• Ceramic sink in head
• Cockpit hot & cold shower
• Icebox drain pump
• Manual marine toilet
• 40 US gallon holding tank with deck pump out
• Marelon seacocks

BILGE PUMPS

• Rule 3500 electric bilge pump with float switch
• #10 Whale “Gusher” manual bilge pump mounted in cockpit

PROPANE

• 3 burner Force 10 stainless steel stove with oven
• 2 x 10Ib. propane tanks with regulator
• Solenoid propane shutoff valve with remote switch
• All hoses & connectors meet Coast Guard or ABYC requirements

ELECTRICAL

• Exterior Lights
• Navigation lights on bow pulpit, stern light on stern pulpit
• Steaming, foredeck, masthead & speader
• Lights on mast
• Light at compass
• Interior Lights & Fans
• Overhead dome lights in staterooms, main cabin, galley, head & engine space
• Directional reading lights in each stateroom & main cabin
• Directional light at chart table
• All light “cantaloupi” or “DanishCabin” or equivalent
• 12 Volt System
• Wiring sized & colour coded to ABYC specs
• 1 x DS115 & 2 x 8D gel cell house batteries
• 2 explosion proof master battery selection switches
• 12V D.C. custom distribution panel with 30 amp double pole shore power main breaker, A.C. line voltage meter, polarity indicator
• 6 A.C. branch circuits
• 50 ft. shore power cord with 30 amp adaptor
