INTRODUCTION

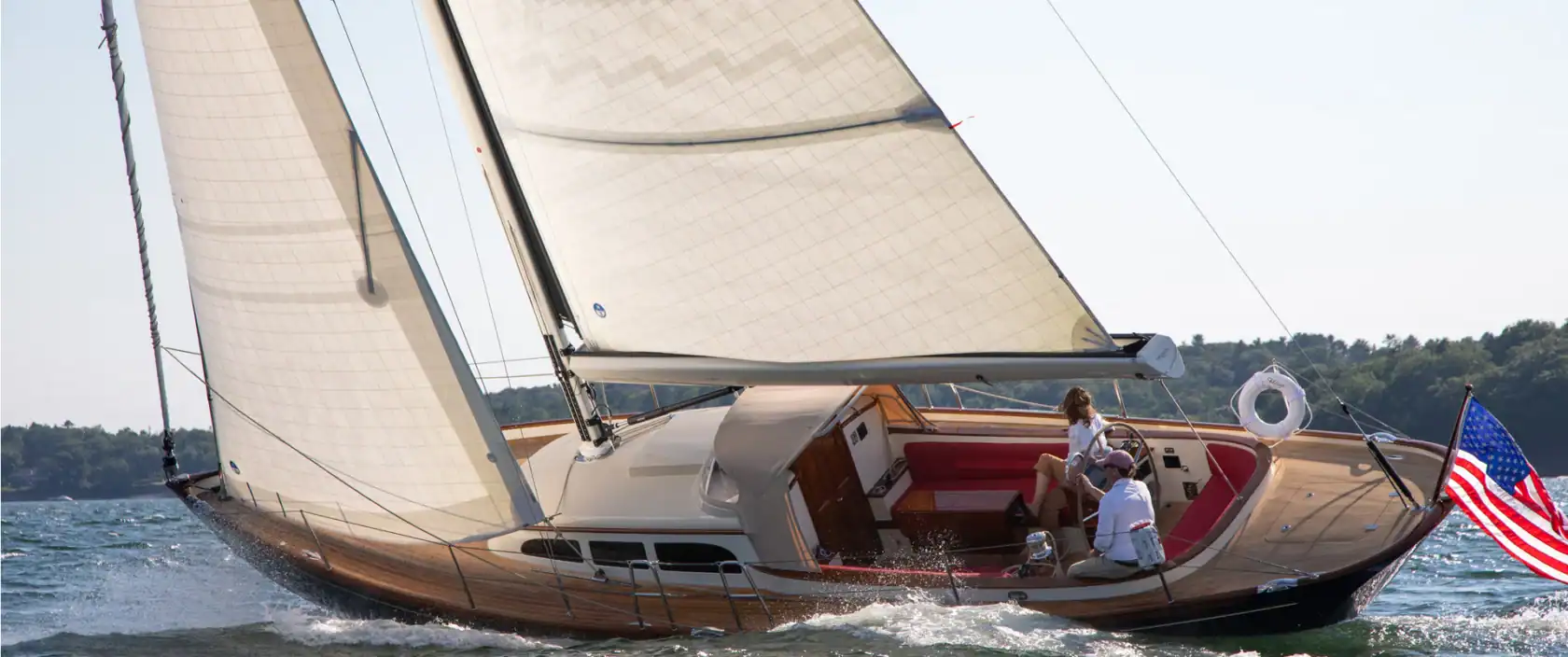

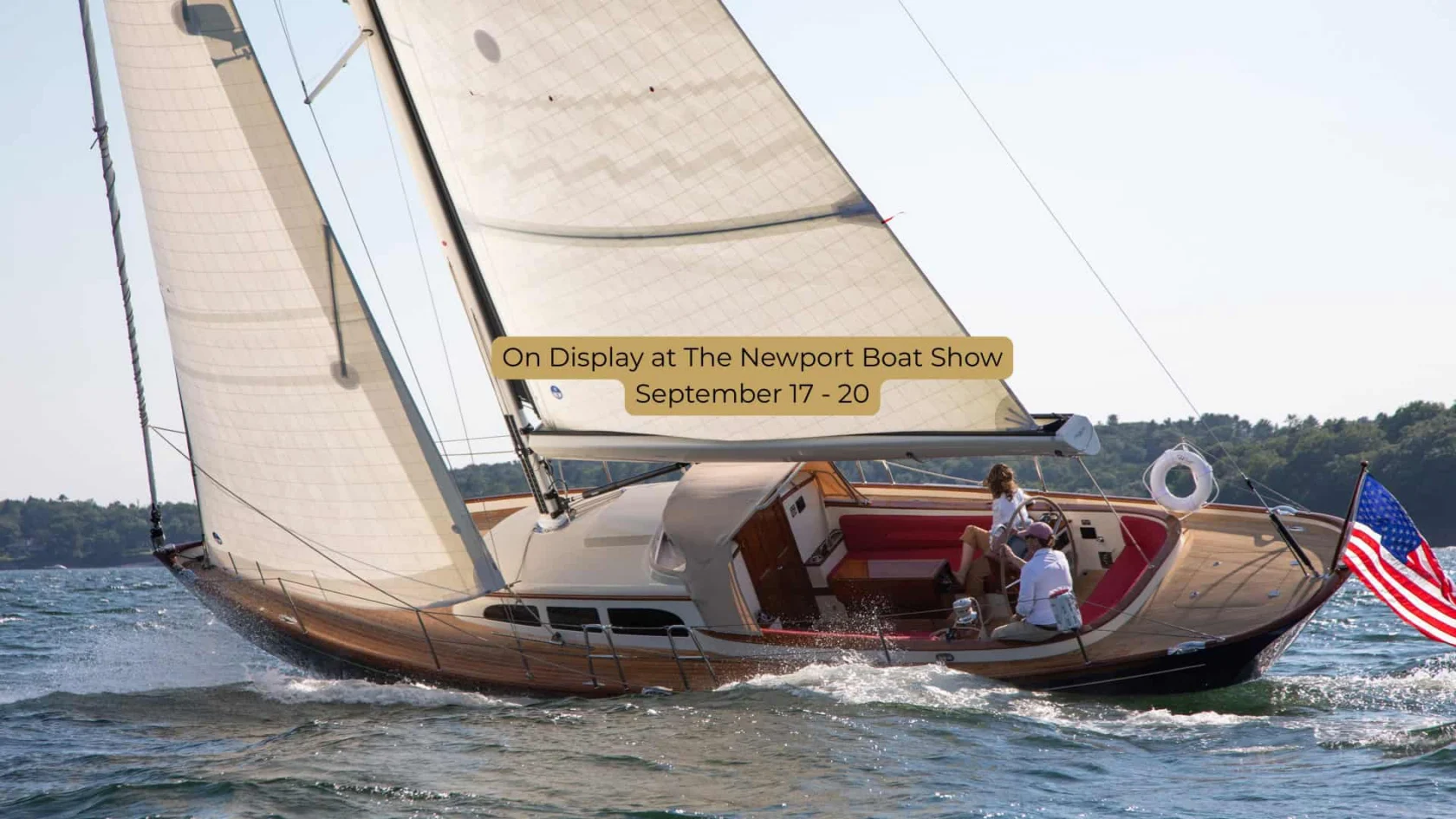

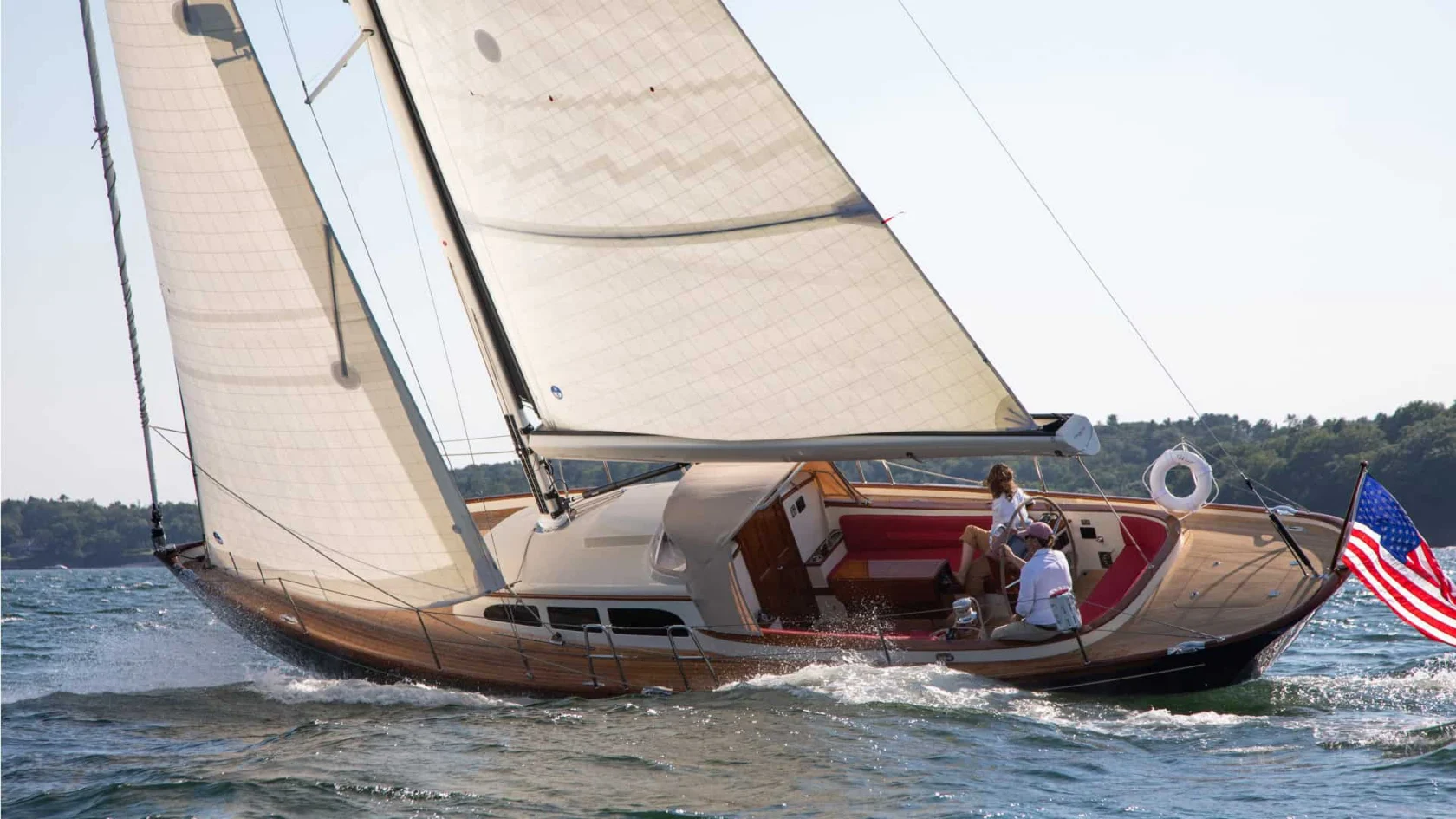

Fresh off the drawing board of the renowned Stephens Waring Yacht Design in 2024, WISP is a fresh take on a gentleman’s/woman’s daysailer. WISP continues the legacy of the SWYD Spirit of Tradition (SoT) yachts, where classic design meets contemporary innovation and performance. Constructed by Artisan Boatworks in Rockport, ME, WISP incorporates clever, modern design and engineering solutions to ensure a swift and efficient yacht wrapped in a traditionally beautiful veneer. A gracefully balanced hull reminiscent of mid-20th-century cruiser-racers along with elegant overhangs that echo historic classic yachts will have you turning heads in every harbor. Don’t be fooled by her sheep’s clothing though, the owner’s prerogative and design demand was for impressive light-air performance as well as a weekender-capable interior – and that’s just what was delivered. Offered now just ~12 months after she was launched, WISP presents a unique opportunity for a buyer to purchase a nearly new boat at a fraction of the new-build price, and without the build time.

BROKER COMMENTS

WISP appeals to me as a more modern and more appealing iteration of the Friendship 40’s. Where the Friendship boats fell short, WISP picks up the slack – the performance is not just impressive but surprising – especially in lighter air where her slippery lines, light displacement, and efficient rig really shine. The cockpit is cleverly designed with modern sail-handling equipment to allow for true singlehanded sailing, with all controls easily accessible from a sitting position behind the helm. This is true even for the downwind gennaker, and it sets her apart from other boats in this class. What really impressed me was that SWYD managed to squeeze in an inviting interior with standing headroom and enough space and comfort systems that you wouldn’t think twice about weekending onboard – this is rare in a 39 ft sailing yacht with classic lines such as this (which often feel much smaller inside than their LOA would suggest). The build quality is exactly what one might expect from a small, pedigreed artisan boatbuilder in Maine.

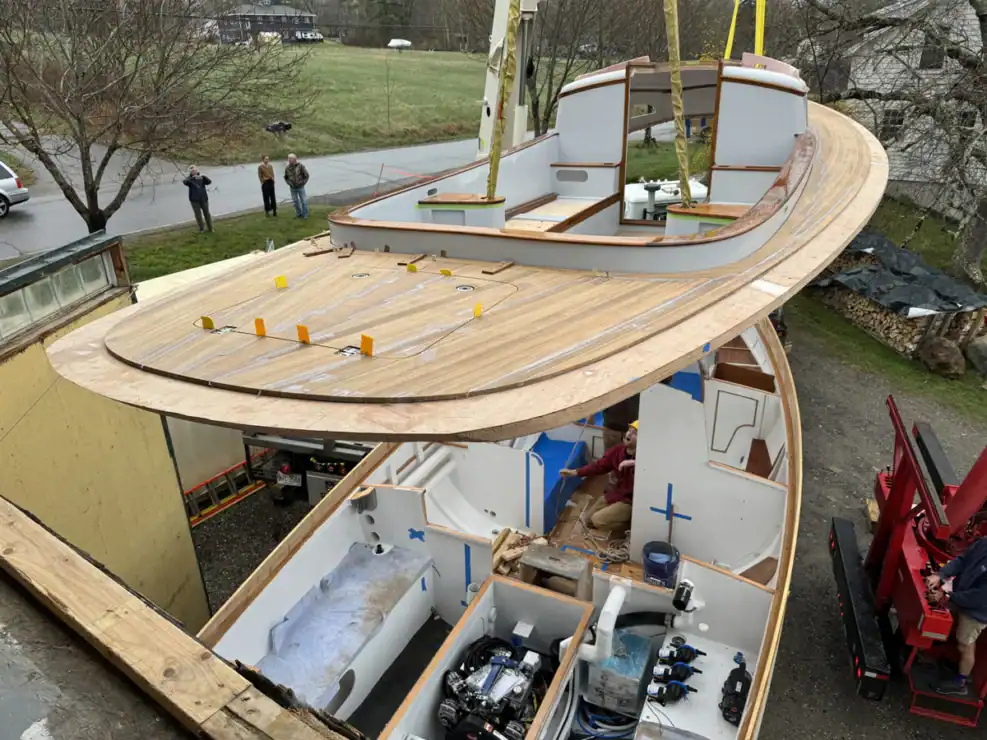

Deck and Hull: Design & Construction

• Hull Construction Type: Cold-molded wood-epoxy composite.

• Hull Materials: Western Red Cedar planking with E-glass and epoxy skin; Douglas Fir structural frames.

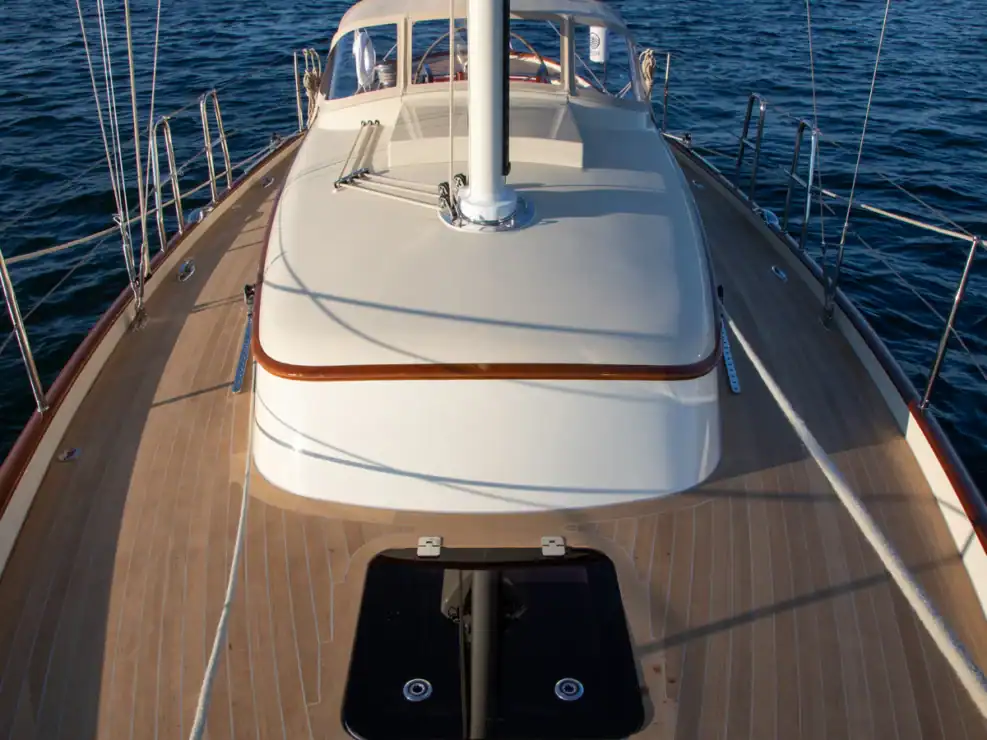

• Deck Construction: Premium laid teak over a foam-core composite sandwich, reinforced with wood and E-glass for optimal structural rigidity.

• Superstructure: Marine plywood encapsulated with E-glass.

• Bulkheads: Structural Okoume marine plywood.

• Floor Timbers: Integrated with laminated frames; floors crafted from Mahogany and Douglas Fir.

• Bow Thruster Tunnel: Dedicated forward hull tunnel housing a Sleipner 24V bow thruster for effortless close-quarters maneuvering.

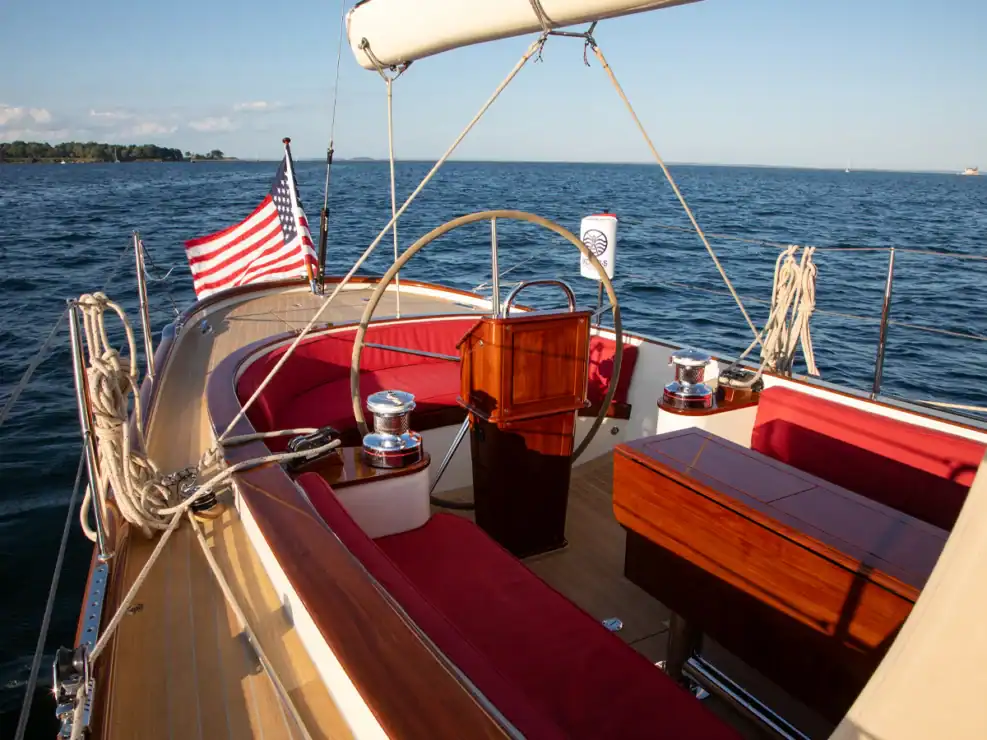

• Cockpit Configuration: Sophisticated dual-purpose layout splitting guest and sailing zones:

• Guest Lounging Area (Forward): Clutter-free zone featuring plush upholstered seating surrounding a custom drop-leaf table. The table includes hidden storage for wine coolers and glasses.

• Sailing Cockpit (Aft): All sailing controls, sheets, and lines run entirely aft of the helm, safely isolating guests from loaded lines.

Deck Hardware and Rigging

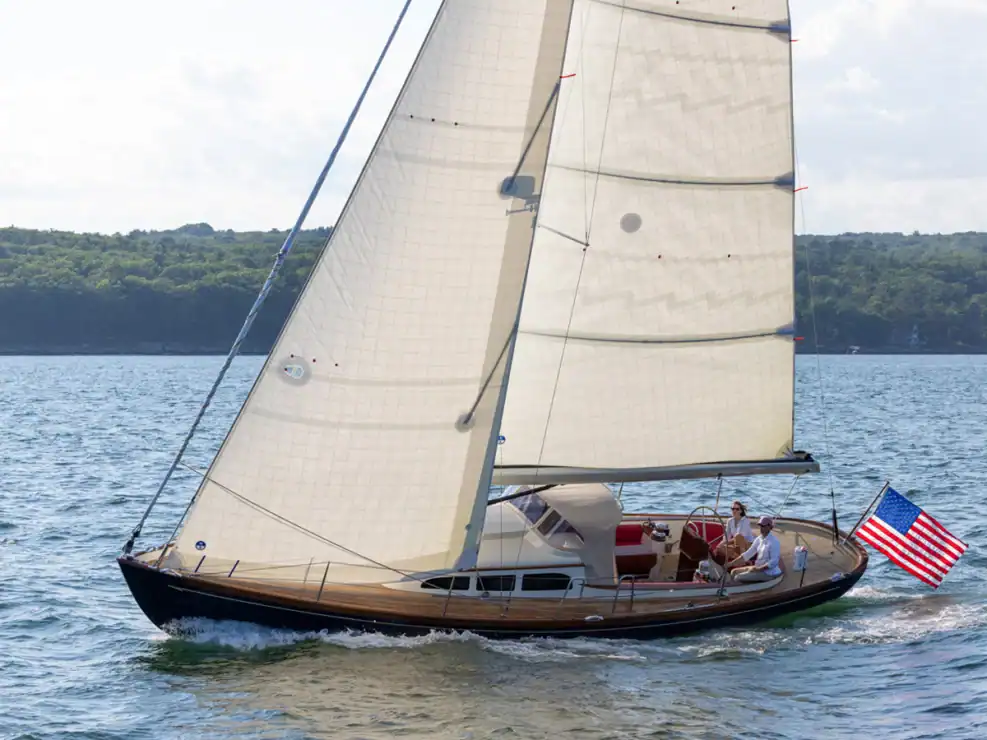

• Rig Type: Solent rig featuring a working jib and a large, multi-purpose reaching sail on fixed furlers.

• Mast: Moore Brothers two-spreader carbon fiber mast.

• Standing Rigging: Nitronic rod rigging.

• Boom: Carbon fiber furling boom equipped with an integrated jibe-preventer line.

• Boom Vang: Electro-hydraulic vang system.

• Mainsheet System: Under-deck mainsheet trim system featuring an automated, two-speed 1:3 reverse-purchase hydraulic cylinder for rapid fine-tuning under load.

• Winches: Oversized Harken electric winches driven by push-button controls at the helm.

• Jib Furler: Furlex electric through-deck furling gear.

• Reaching Sail Furler: Furlex stemhead-mounted furling gear for the asymmetric reaching sail.

• Anchor System: Hidden, gas-spring assisted stow-away/swing-out anchor launcher that keeps the anchor and chain completely below deck inside the forward locker to preserve the classic bow profile.

• Windlass: Electric windlass mounted below decks.

• Cockpit Lighting: Ambient soft LED lighting integrated throughout the cockpit.

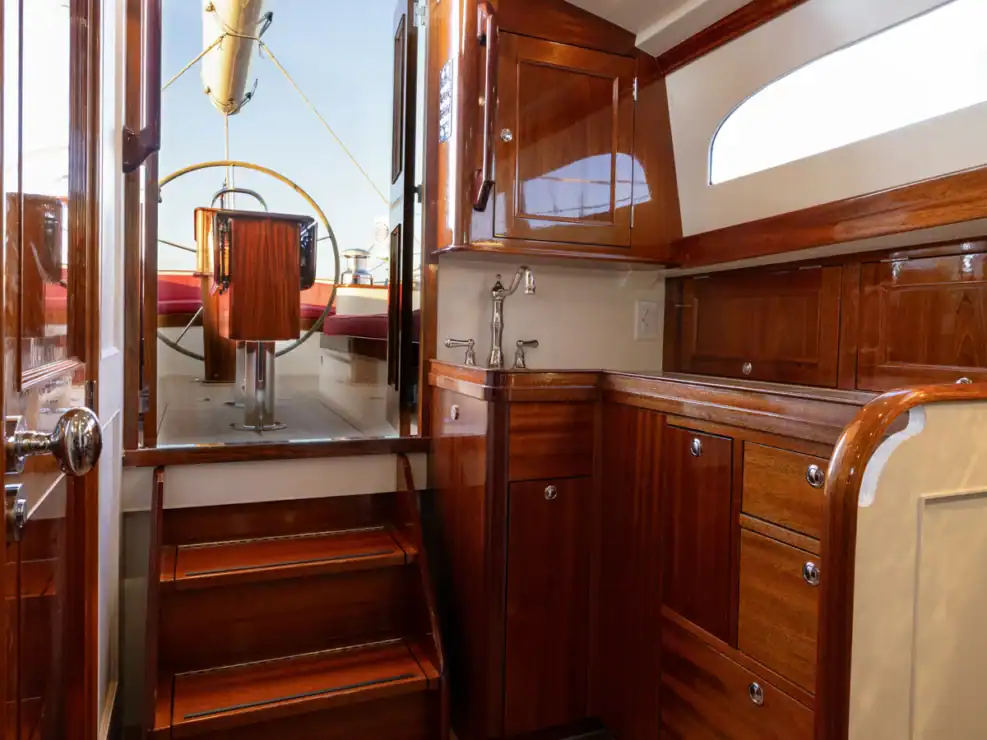

Interior Layout & Luxury Amenities

• Headroom: Rare standing headroom available in both the galley and the private head.

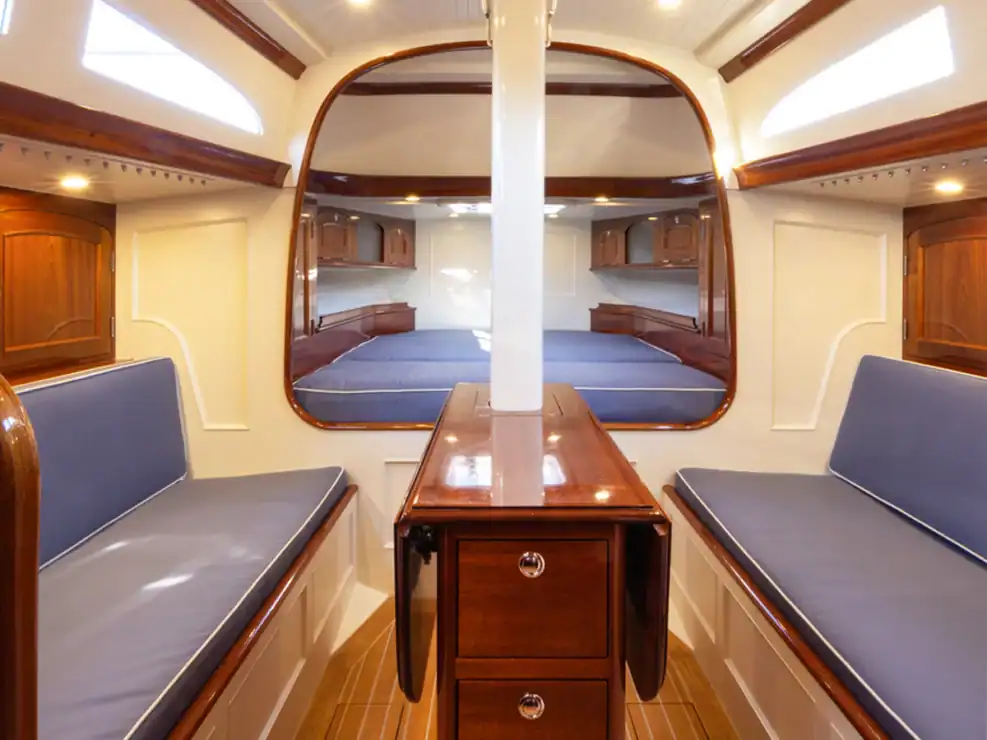

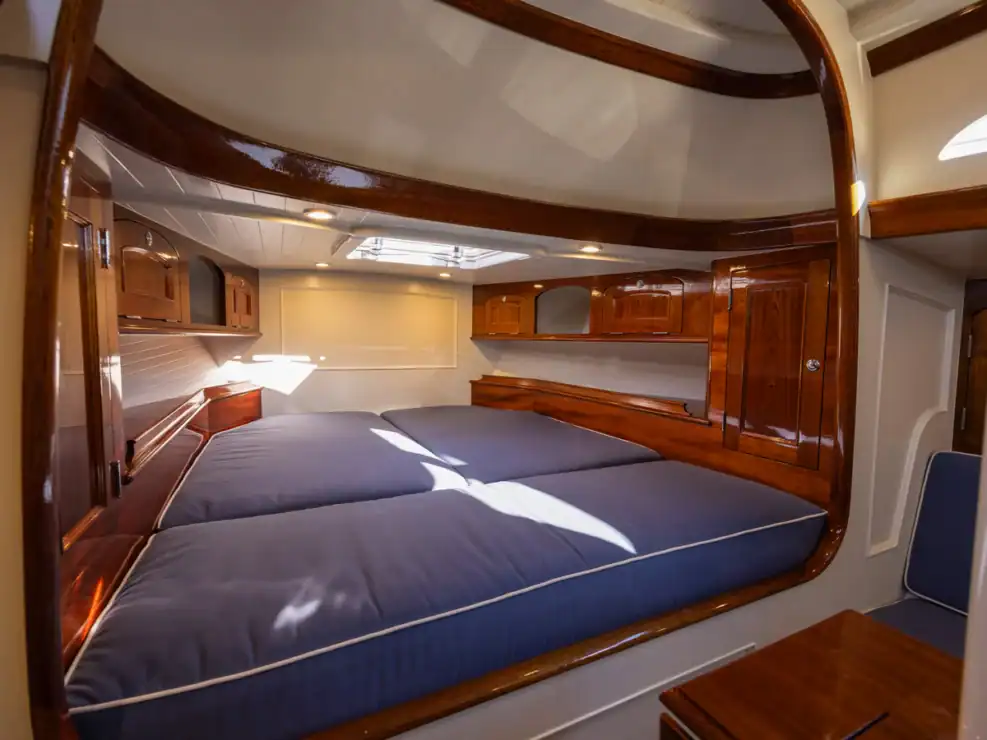

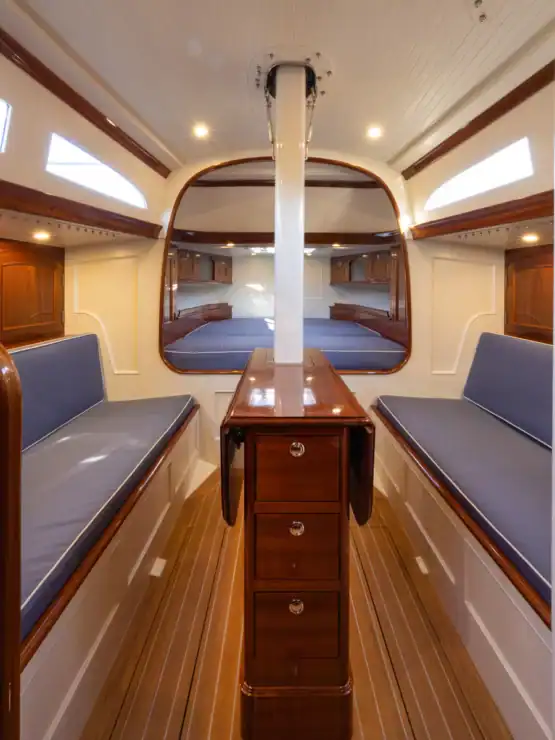

• Accommodations: Sleeps two guests in a spacious queen-size forward berth; saloon seating comfortably accommodates four guests.

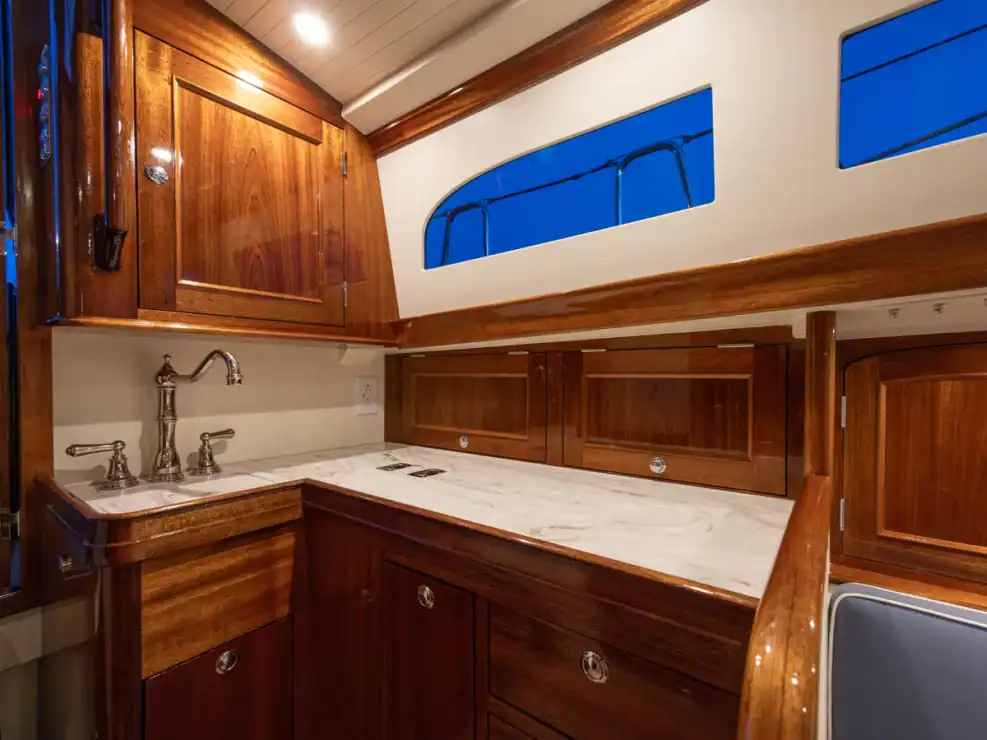

• Galley Appliances:

• Single-burner induction cooktop

• Microwave oven

• Keurig coffee machine

• 103-liter (3.6 cu. ft.) custom-fabricated stainless steel refrigerator/freezer combo insulated with 50mm (2”) polyurethane foam.

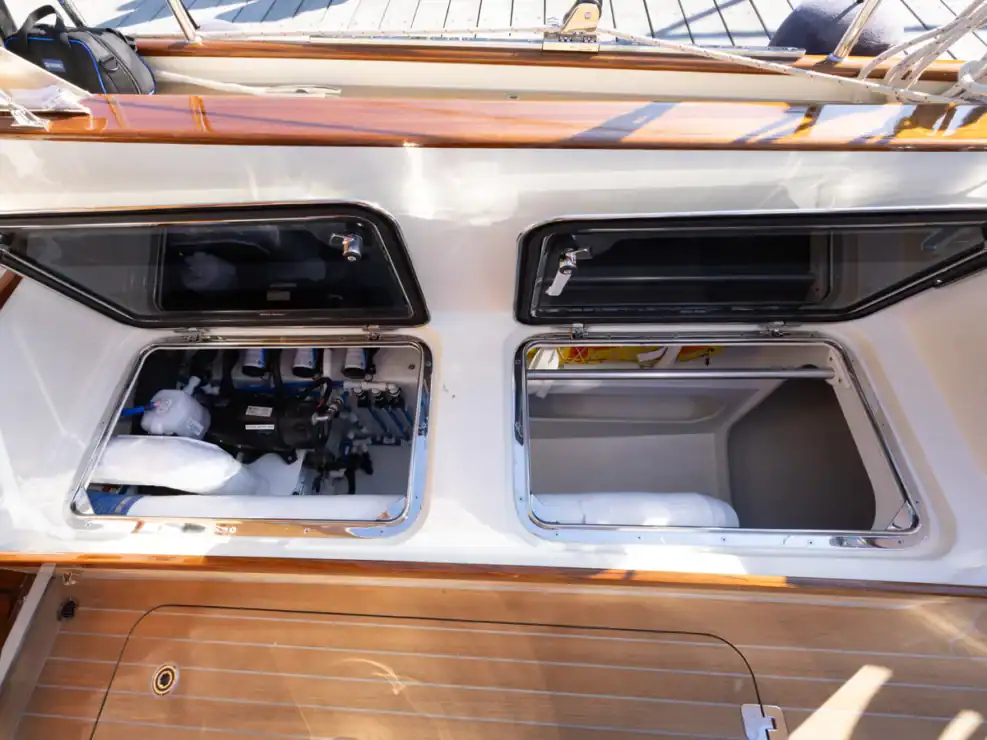

• Refrigeration Compressor: Sea Frost BD-XP compressor with an AEO air-cooled system (mounted in port cockpit locker, ducted through the main bulkhead via the galley toe kick).

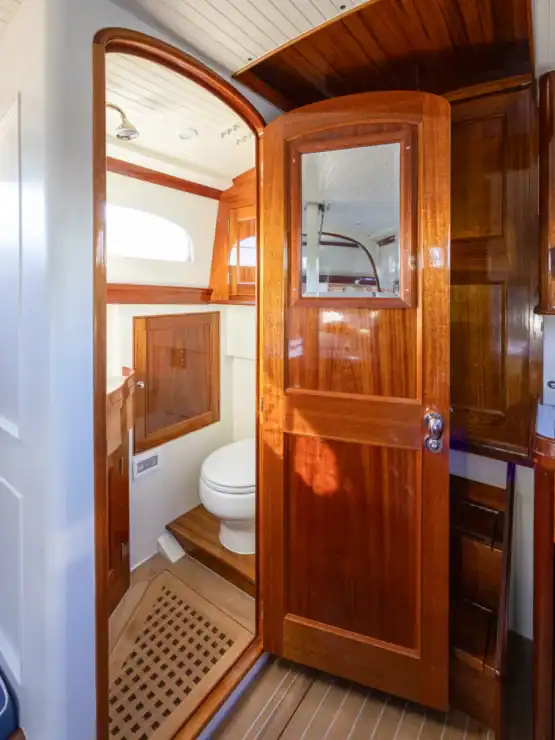

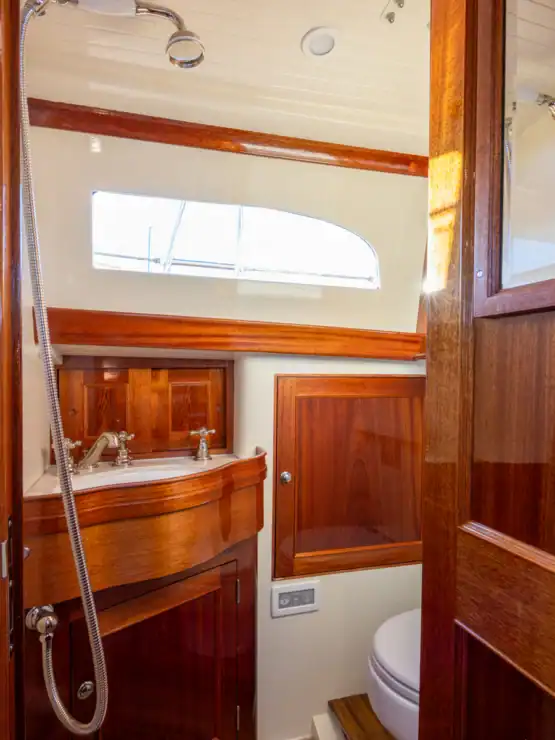

• Marine Head (Toilet): Private compartment with a Tecma Silent Plus 2 Short 24V DC fresh-water plumbed electric marine toilet.

• Shower: Overhead hot-water shower system.

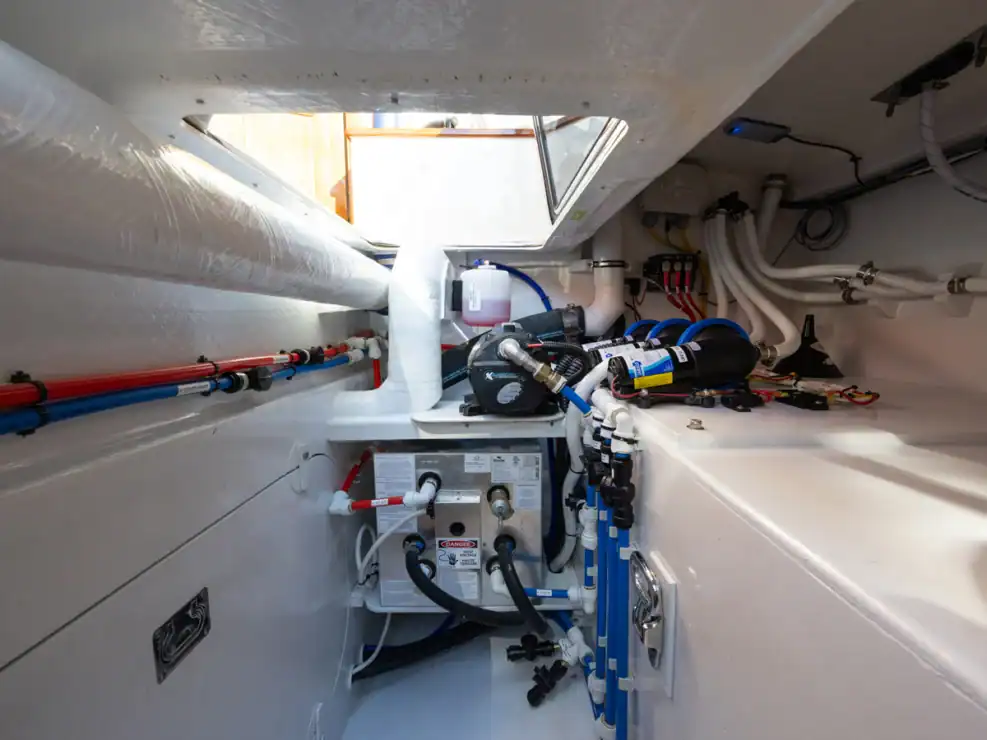

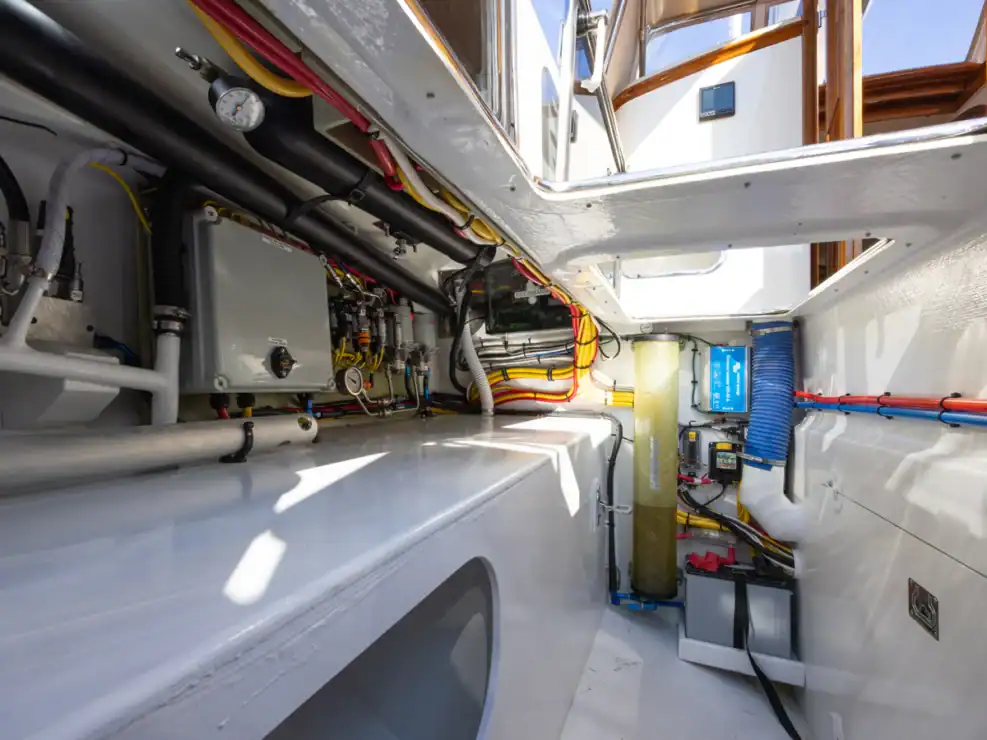

Mechanical & Plumbing Systems

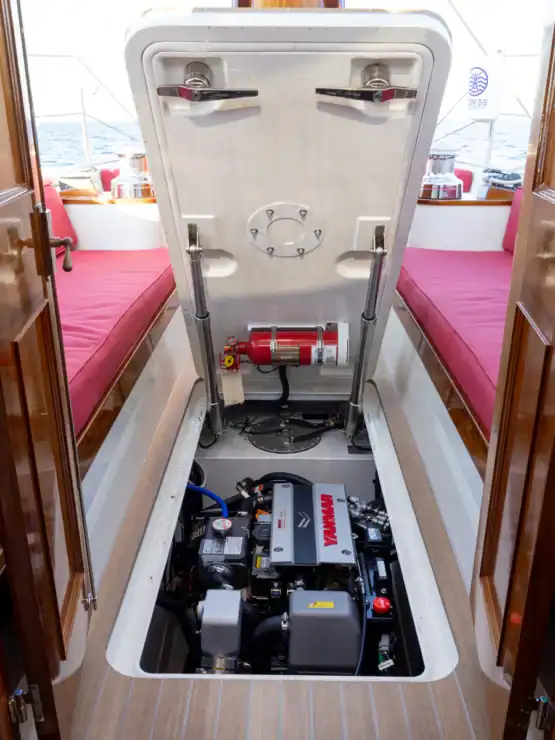

• Primary Engine: Yanmar 3JH40 (40 HP @ 3,000 RPM)

• Drive Unit: Yanmar SD60 Saildrive

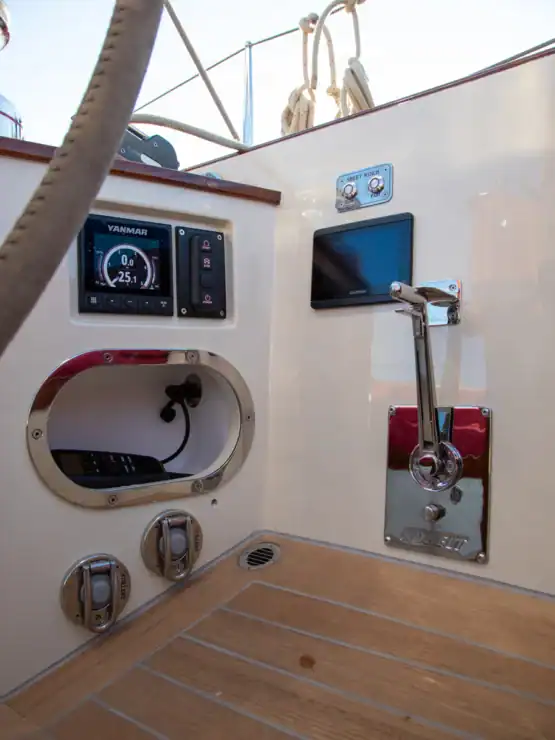

• Engine Throttle: Kobelt 2042 single-lever stainless steel control

• Alternators: Dual (2) 24V high-output alternators

• Fire Suppression: Fireboy #MA-2-400-227 manual/automatic total flooding clean agent fire extinguisher system with a manual pull cord in the cockpit.

• Water Heater: KUUMA 6-gallon stainless steel water heater (powered via 120 VAC or engine heat exchanger loop).

• Fresh Water Pump: Headhunter XR124 24V DC pressurized fresh water pump.

• Black Water Discharge: Sealand T24 pump leading from the holding tank to an overboard discharge thru-hull valve.

• Gray Water System: Whale Gray Water Sump Pump and waste tank with intelligent controls.

• Bilge Pumps: Two (2) Jabsco 24V electric bilge pumps plus one (1) high-capacity Rule 2000 GPH 24V centrifugal bilge pump.

• Thru-Hulls / Seacocks: Forespar Marelon glass-reinforced plastic valves.

Electrical Systems

AC Electrical Power (120V)

• Shore Power Connection: 30 Amp service with a 50 ft shore power cord.

• Inverter/Charger: Victron MultiPlus 24/3000/70 3000-Watt inverter and 70 Amp battery charger.

• Galvanic Isolator: Victron VDI-32 galvanic isolator.

• Electrical Panel: AC/DC panel located outboard of the port settee featuring magnetic circuit breakers, digital volt/amp meters, frequency indicators, and a source selector switch.

• Outlets: Standard 3-prong 120V double receptacles, fully protected by upstream GFCI receptacles.

DC Electrical Power (24V / 12V)

• House Battery Bank: Victron Lithium-Ion 24V Smart LFP batteries totaling 400 Ah (2x 200 Ah units).

• Engine Start Battery: Dedicated AGM start battery bank.

• System Monitor: Victron Color Control GX digital monitor.

• DC-to-DC Converter: 24V DC to 12V DC 60 Amp converter supplying stable power to onboard marine electronics.

• Battery Switches: Individual bank switches with an emergency crossover switch linking the engine bank and DC-DC converter.

Navigation & Marine Electronics

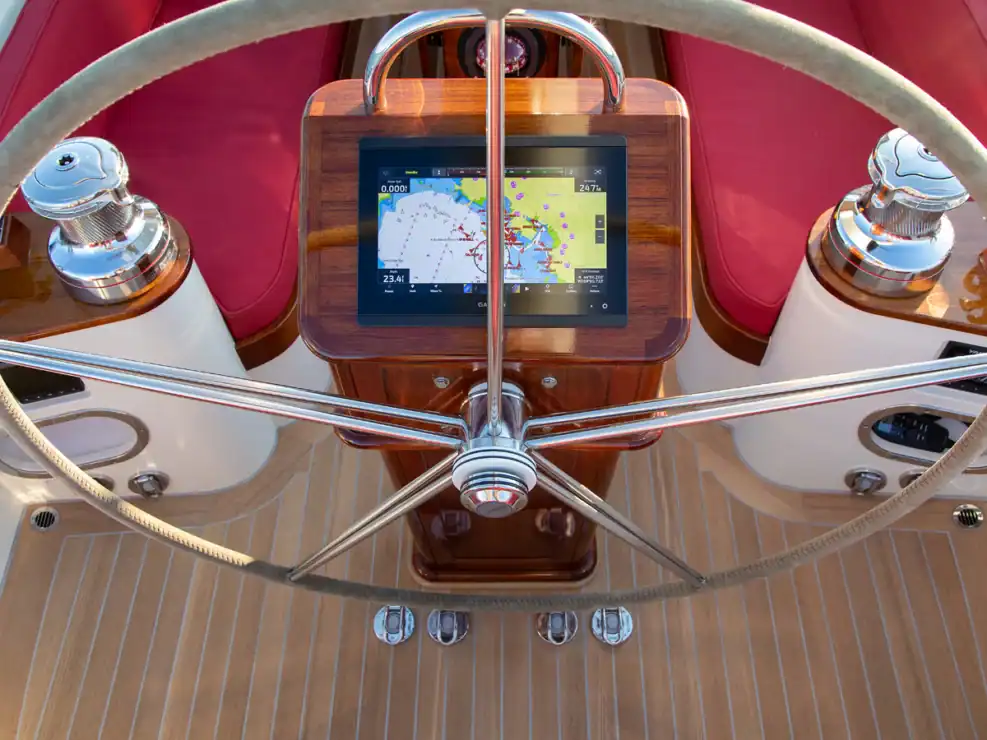

• Chartplotter / MFD: Garmin GPSMap 8610 touchscreen multifunction display.

• Radar: Garmin GMR 18 HD radar with a mast-mounted radome.

• Autopilot: Jefa 200nM autopilot system with an electronic control display mounted at the helm.

• VHF Marine Radio: Garmin VHF 215 radio at the helm paired with a masthead antenna.

• Wind Instrument: Garmin anemometer and wind indicator with a masthead wand.

• Depth & Speed: Ultrasonic depth sounder transducer and ultrasonic speed transducer.

• Audio System: Fusion Radio/MP3/CD player driving two (2) speakers in the saloon and two (2) waterproof speakers in the cockpit.

• PA / Hailer: Public address hailer horn mounted below the radar dome on the mast.

Sail Inventory & Sail Area Specs

• Sail Manufacturer: North Sails (High-performance membrane sail technology)

• Mainsail: Fully battened membrane mainsail, custom-optimized for the carbon furling boom.

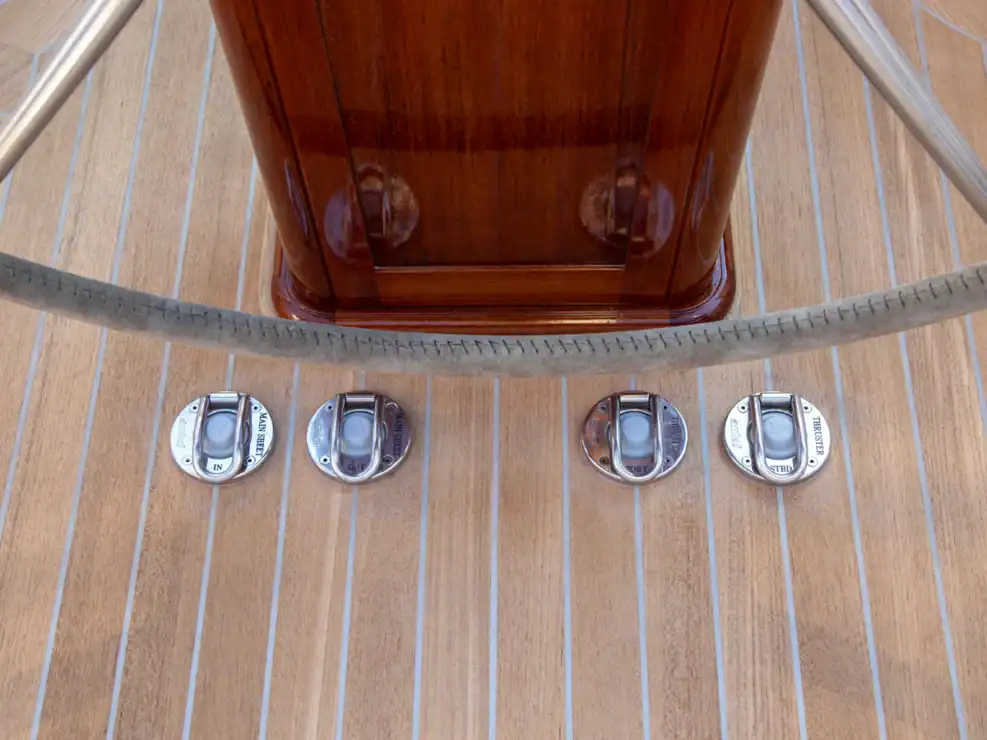

• Working Jib: Furling jib with sheets led directly to winches controlled by ergonomic foot buttons at the helm for effortless singlehanded tacking.

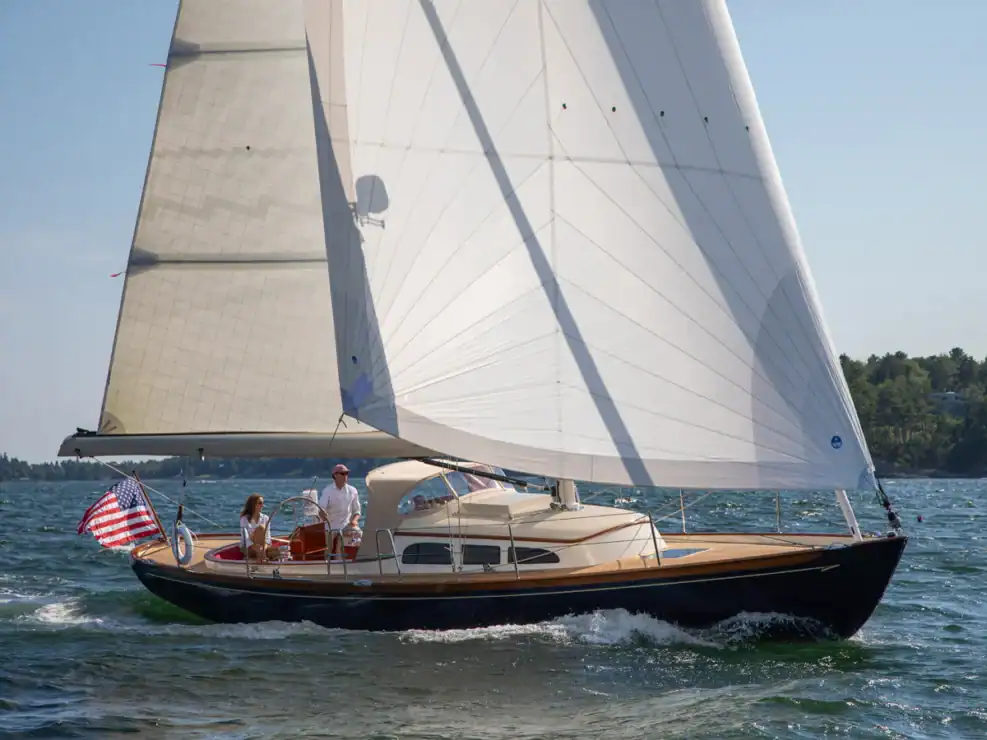

• Downwind / Reaching Sail: Asymmetric flying reacher attached to a stemhead-mounted furling drum. Can remain aloft while furled during upwind tacks and is easily deployed or furled directly from the helm.

Sail Area Measurements

• Mainsail Area: 464 sq ft

• Foretriangle Area (100%): 306 sq ft

• Total Upwind Sail Area: 769 sq ft (excluding flying asymmetric reaching sails)

WISP | Artisan Boatworks | Stephens Waring 39' Custom Sloop

$890,000

Stamford, CT, US
