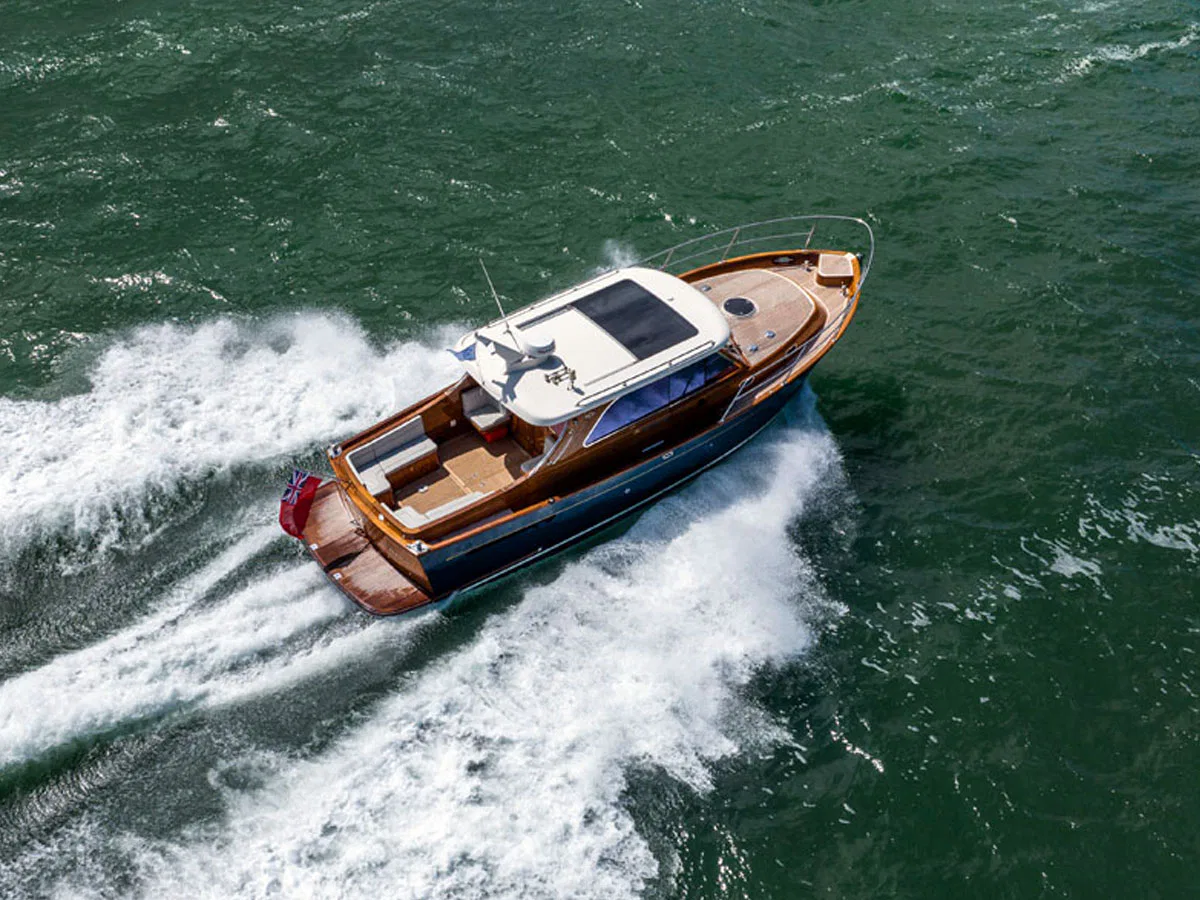

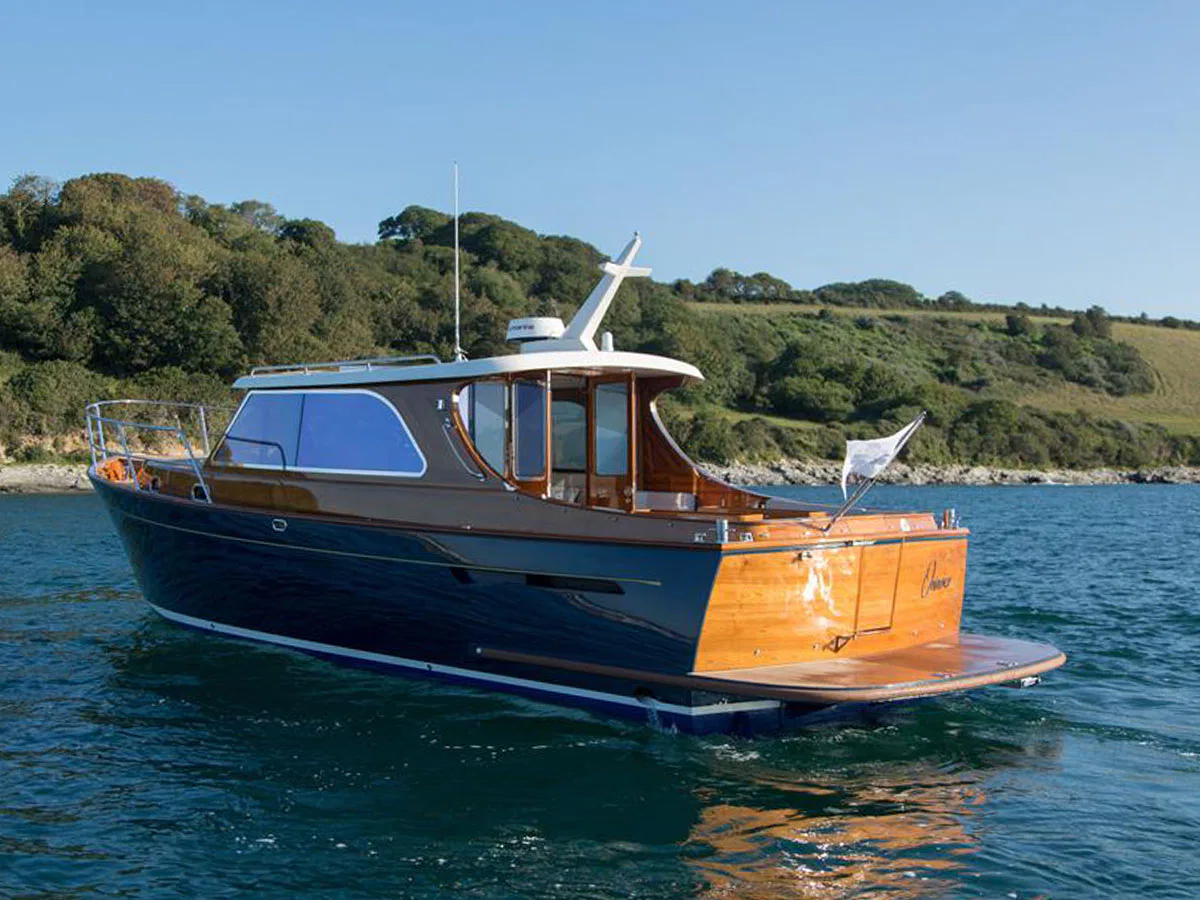

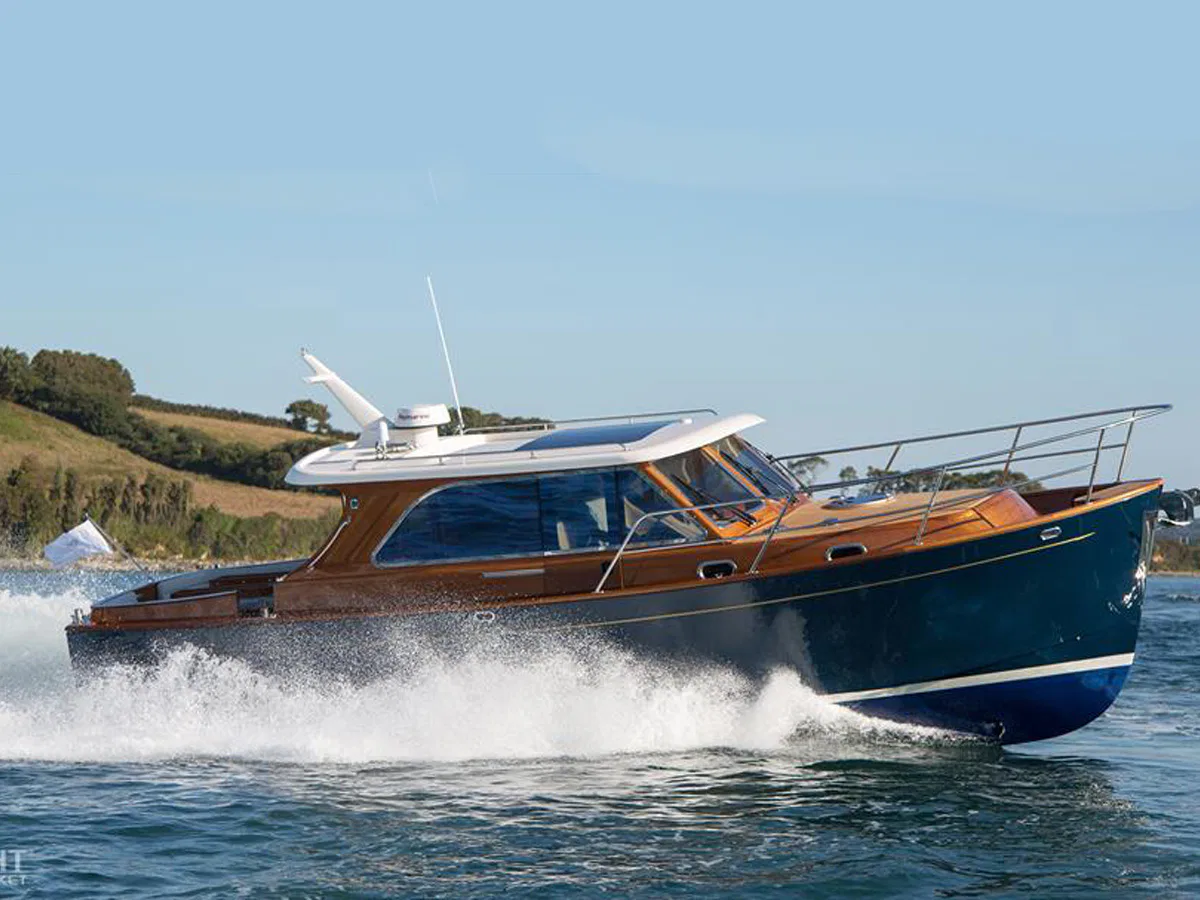

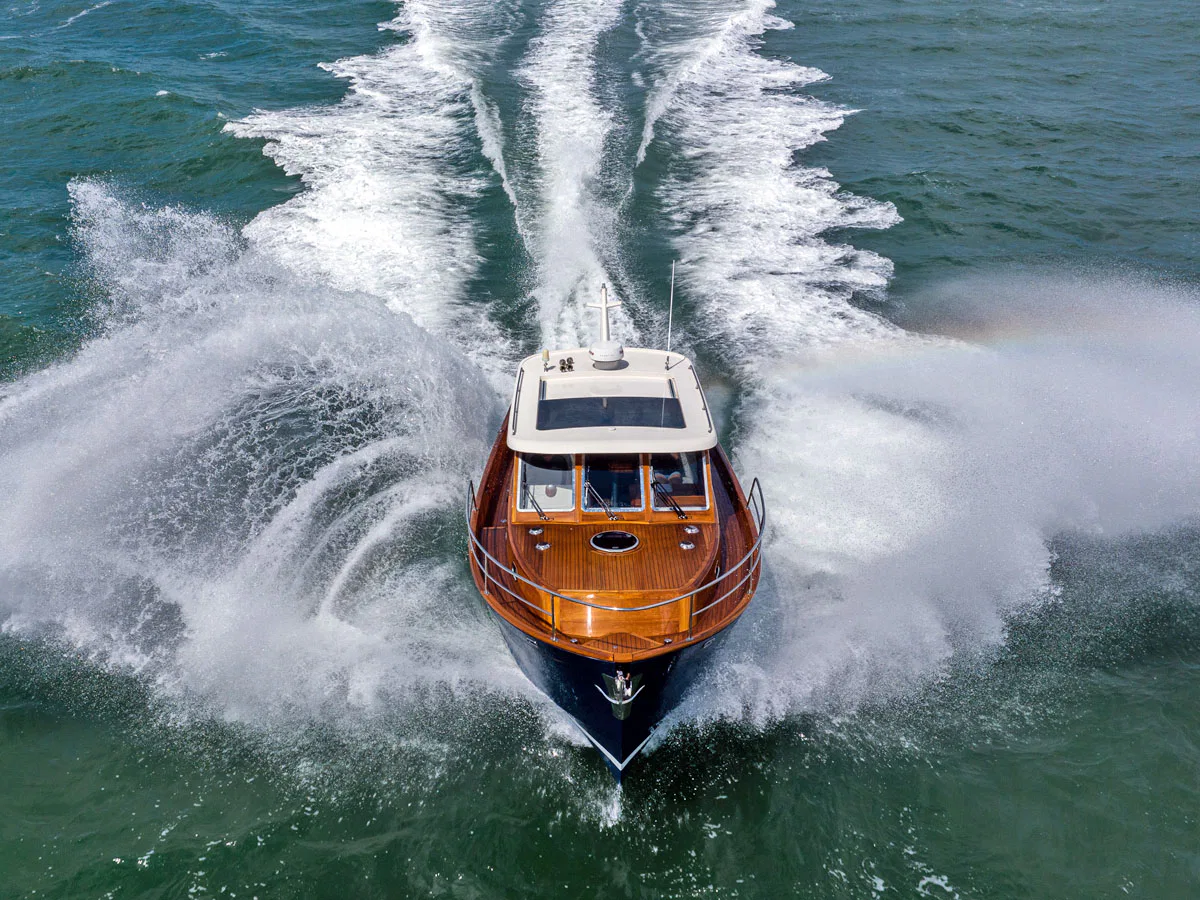

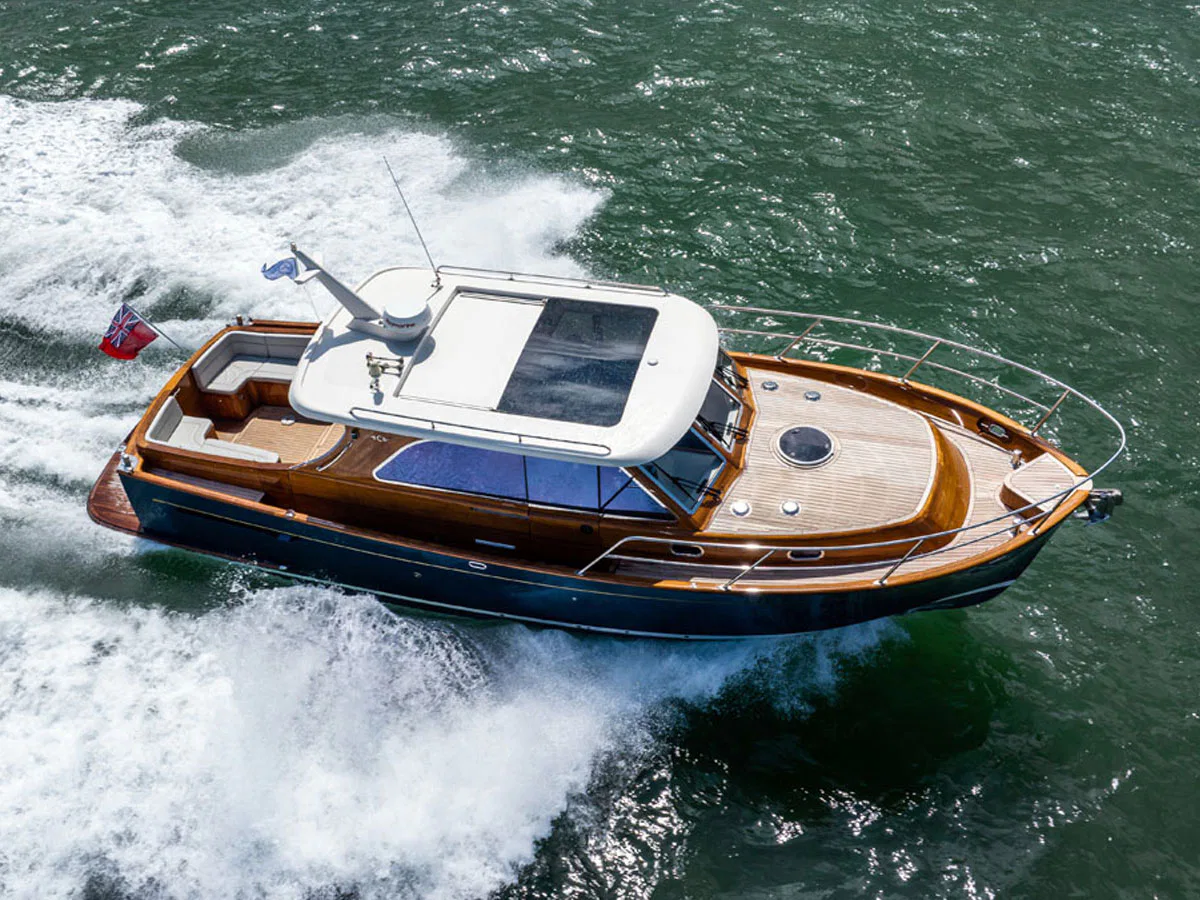

Completed in 2018, ORINOCO presents a rare opportunity to own a very lightly used, extremely well equipped and highly customized Duchy 35. Designed by renowned British naval architect Andrew Wolstenholme, the Duchy 35 borrows much from the Downeast traits both above and below the waterline. She features a stylish, well-proportioned wheelhouse, tumblehome aft, keel protected props, a hard chine hull, and deep bow sections forward with generous freeboard to safely handle the challenging conditions of the English coastline.
She is fitted with the optional smooth-running twin Nanni T8V350 V8 diesel engine upgrade for impressive torque and power, providing effortless cruising performance at 25 knots and a top speed of 31 knots. Beautifully finished with her exterior varnished teak and rich walnut interior joinery, and packing every option including bow and stern thrusters, generator, air conditioning, diesel heater, electric sunroof and much more. Year-round indoor storage, only taken out when in use by owner, Dave Cockwell, Cockwells founder and Duchy yacht creator.
Built to Recreational Craft Directive – Category B
ACCOMMODATIONS
ORINOCO was custom built with solid walnut interior trim and veneered surfaces, with panelled locker fronts and dovetail jointed drawers, meticulously finished in satin varnish. Cabin soles are varnished teak and holly, while the overheads are upholstered panels.

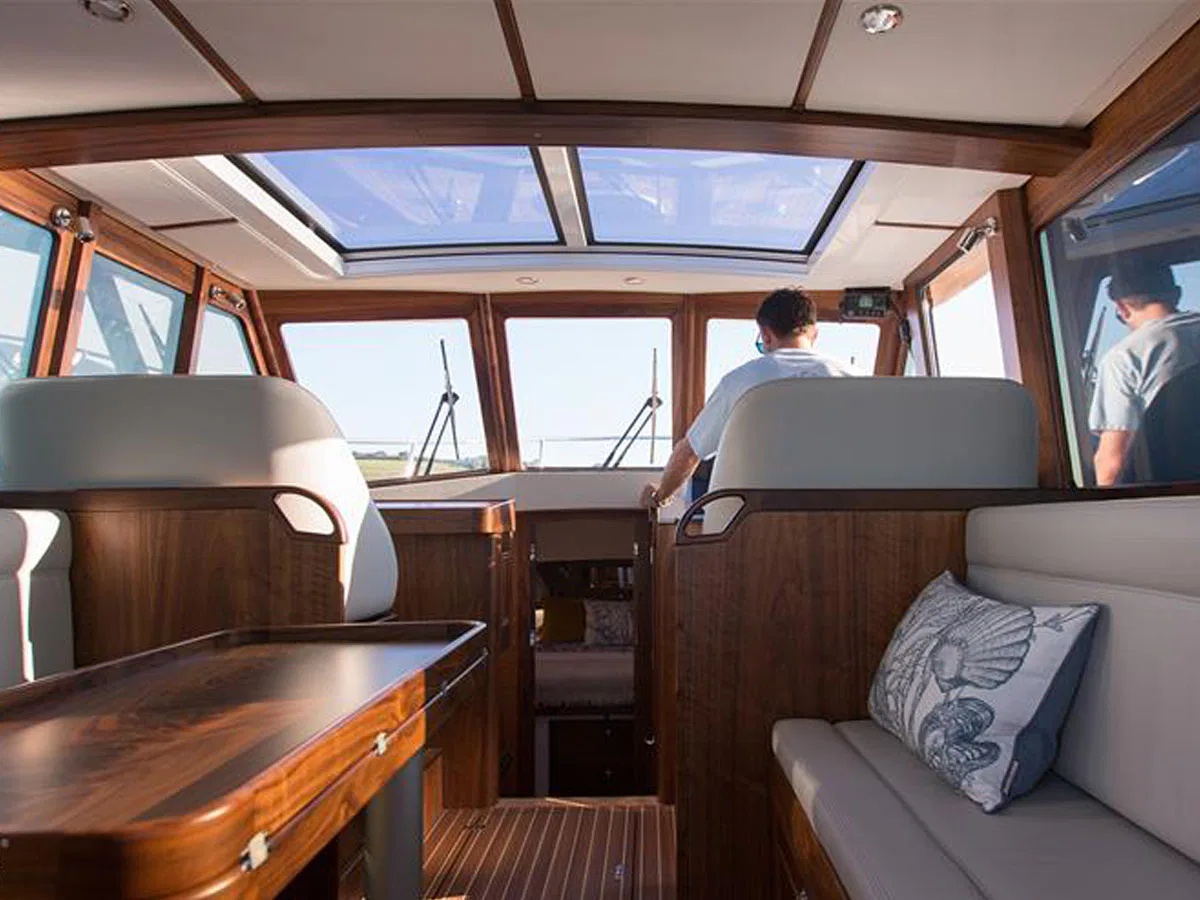

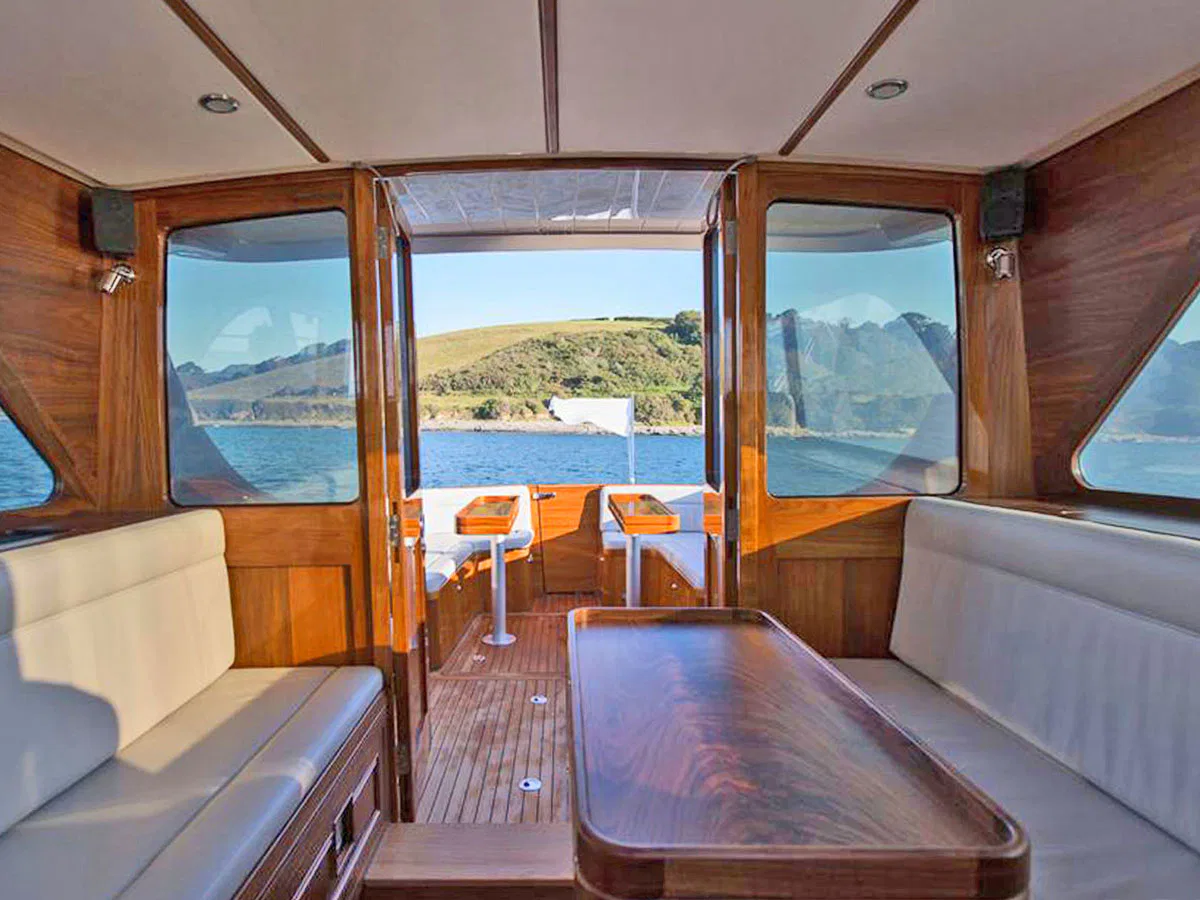

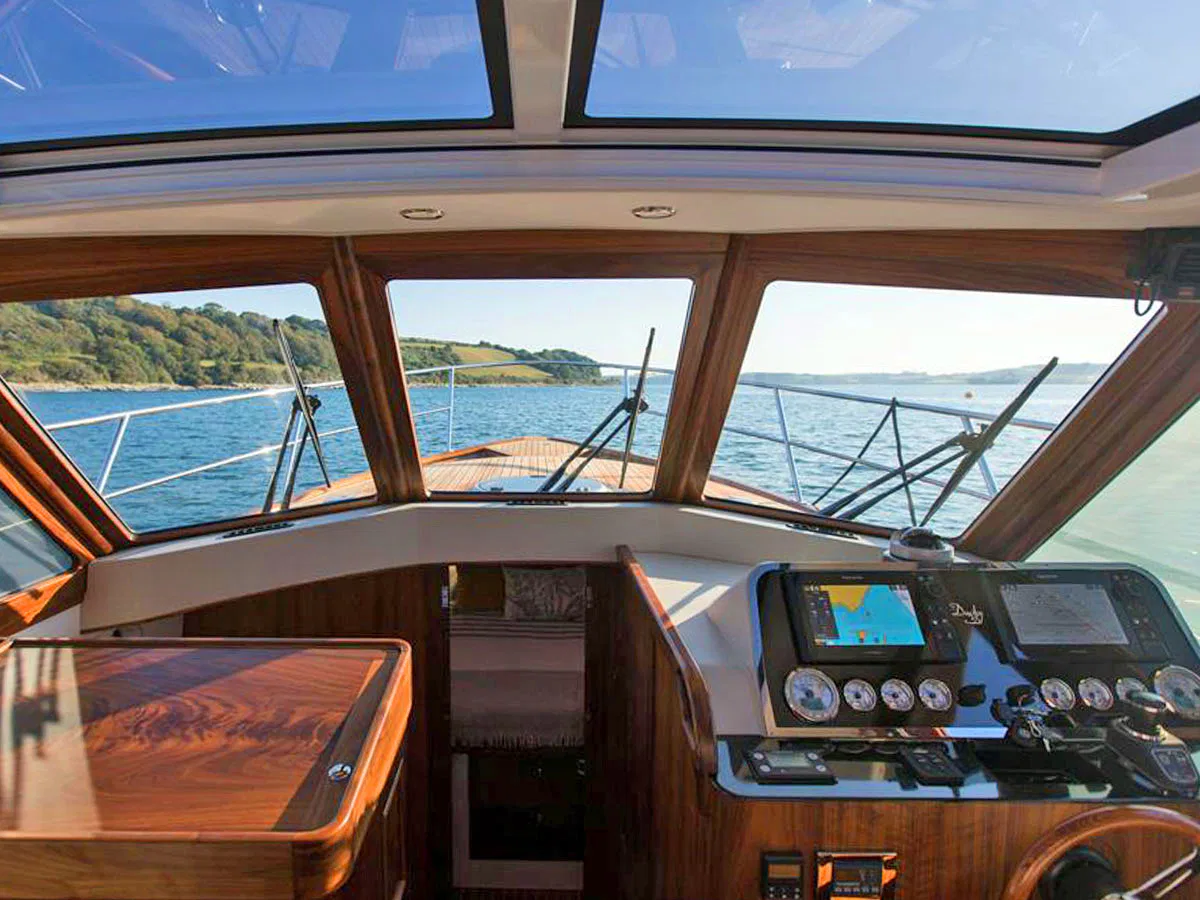

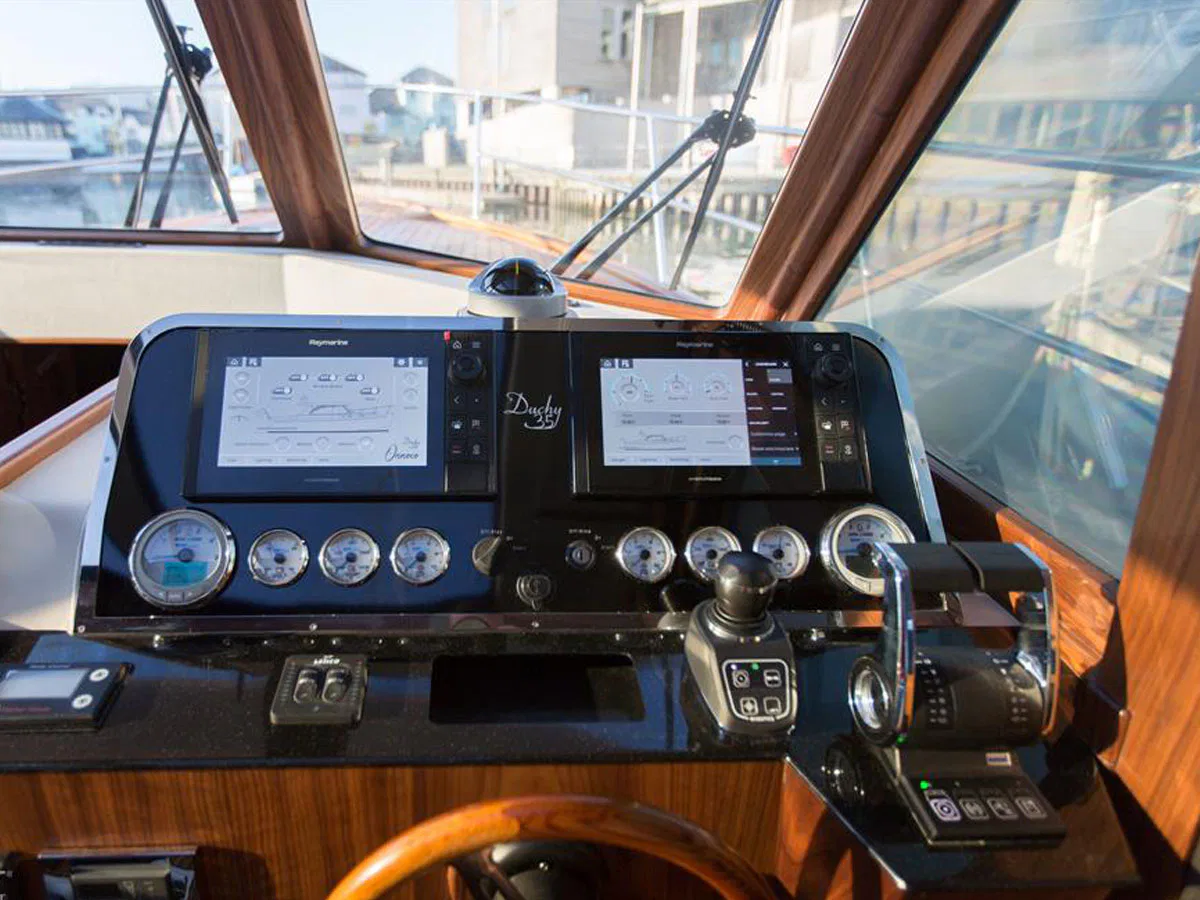

Saloon and helm
Single level entry from aft cockpit into saloon and helm area
Beautiful, varnished teak doors opening outwards to create one large indoor/outdoor space
Full length settees each side with varnished walnut table
Storage drawers under saloon seats

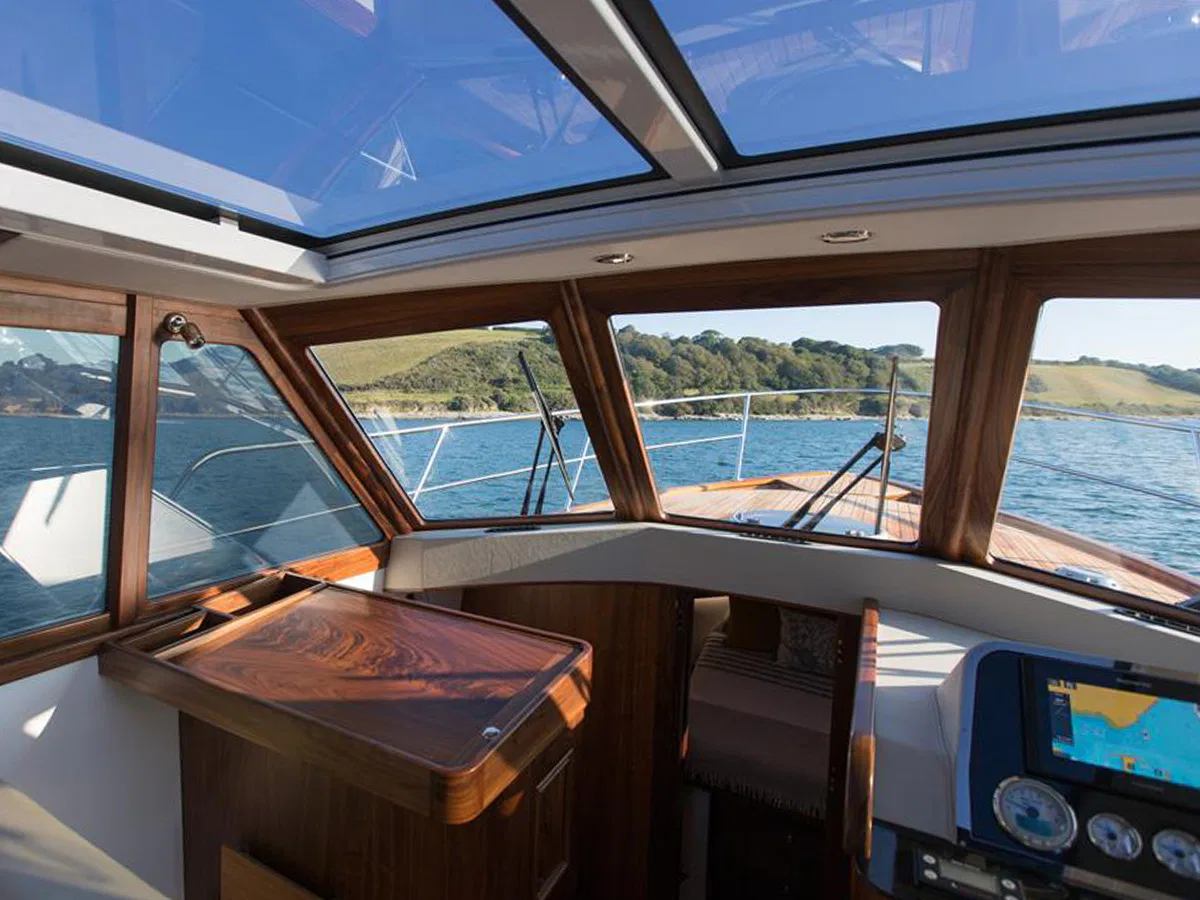

Helm and companion seats
Excellent light and visibility in all directions
Samsung lift-up flat screen TV
Courtesy lighting, spot lighting, reading lights, and down lighting controlled at helm screen
AC
Drink fridge in drawer under saloon seating
Insulated lift-up hatch aft in saloon to access separate area forward of engine space
Lift-up hatch forward to access a large storage area with mechanical and electrical systems and extra-large drink/wine fridge/ice box under saloon
Engine information and tank levels displayed on helm display
Analog compass at helm
Custom sliding helm door for easy and quick access to side decks
Electric sunroof
AC
(3) Wipers with washers and demisters

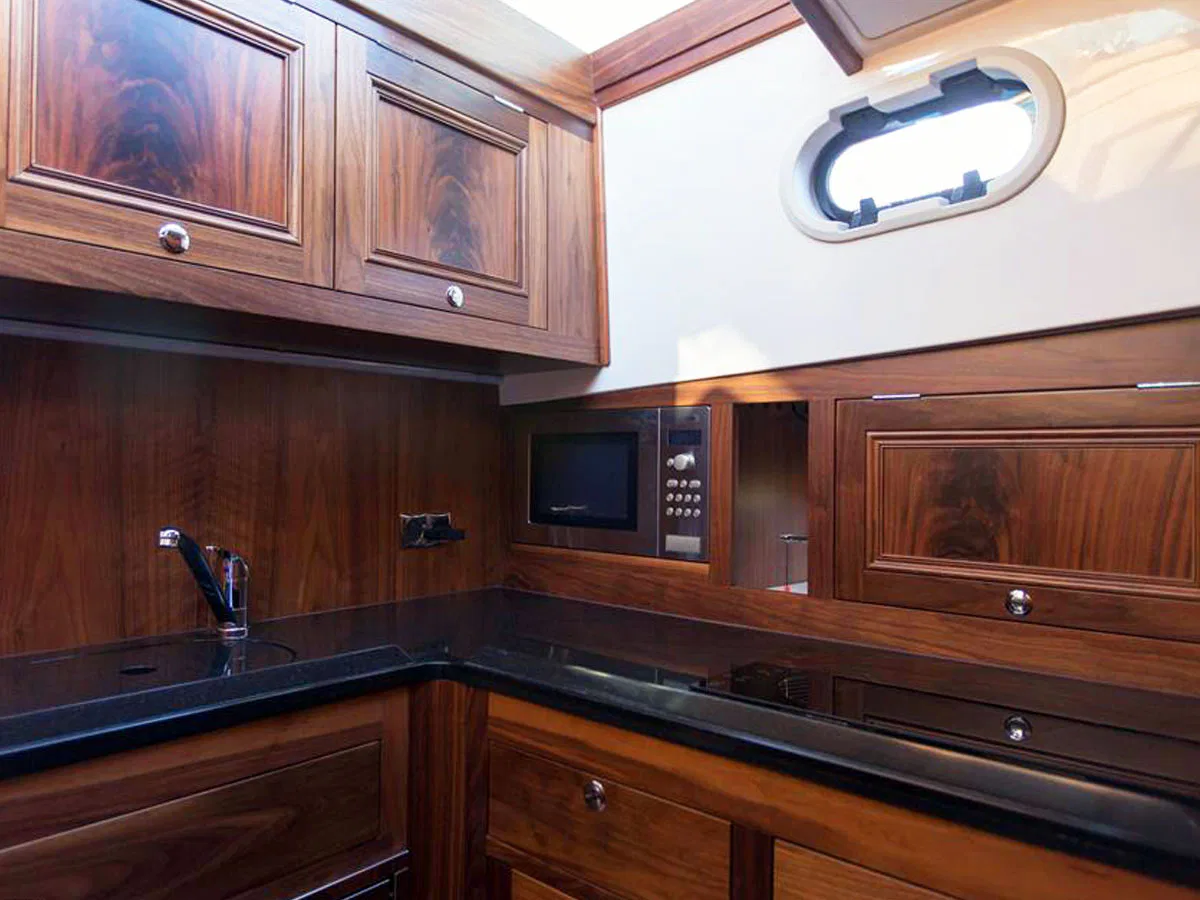

Galley
The galley is port aft, partially open above to saloon, with generous storage and counter space. Features include:
Flush mounted stainless sink with hot/cold faucet
Dometic DC refrigerator – 2 cu ft
Two-burner induction stove
Microwave oven

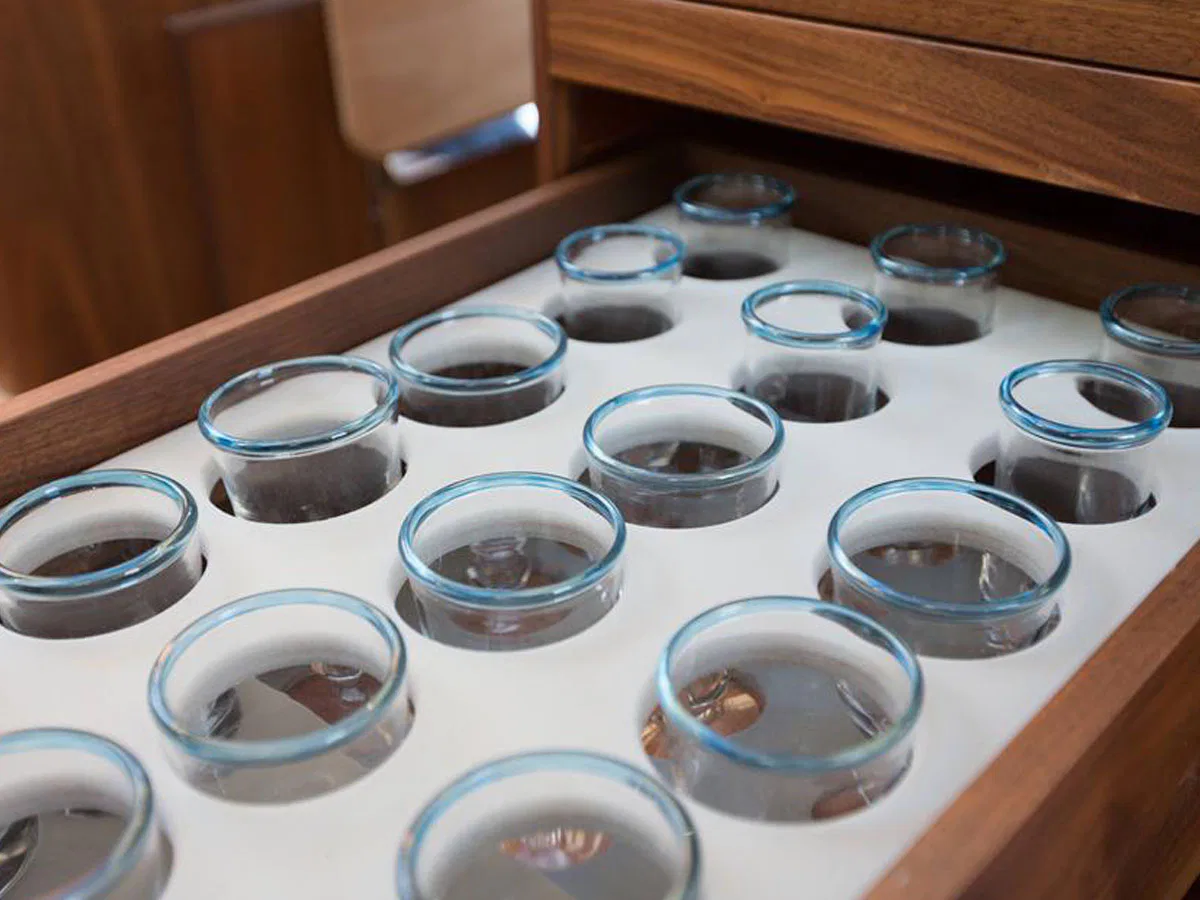

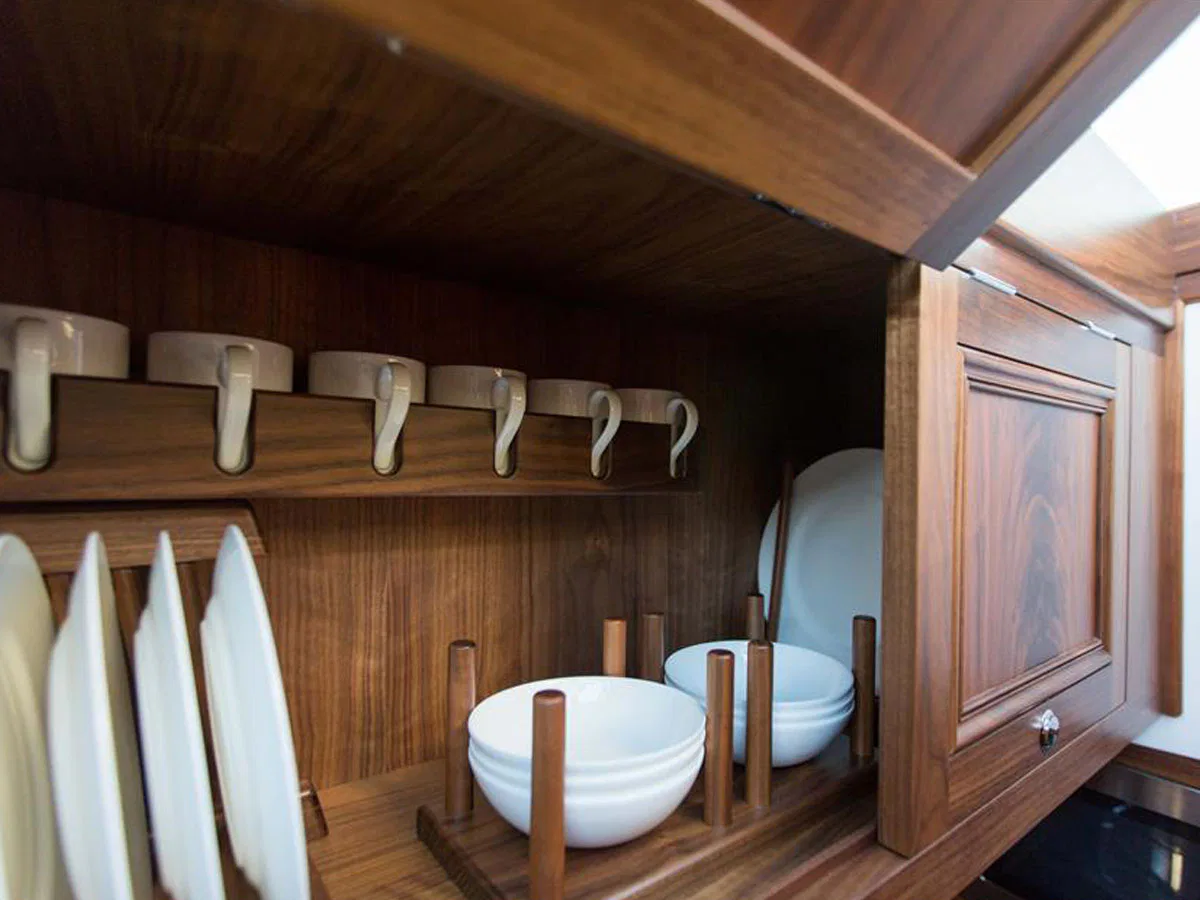

Custom storage for glasses, cutlery and crockery
Opening porthole
Overhead electric lights
Head
A fully enclosed head is aft to starboard with full head room.
Solid surface counter with stainless sink
Fresh water faucet and retractable shower head
Tecma electric toilet
Mirror with storage cupboard
Storage lockers above and below counter
Opening porthole
Heating

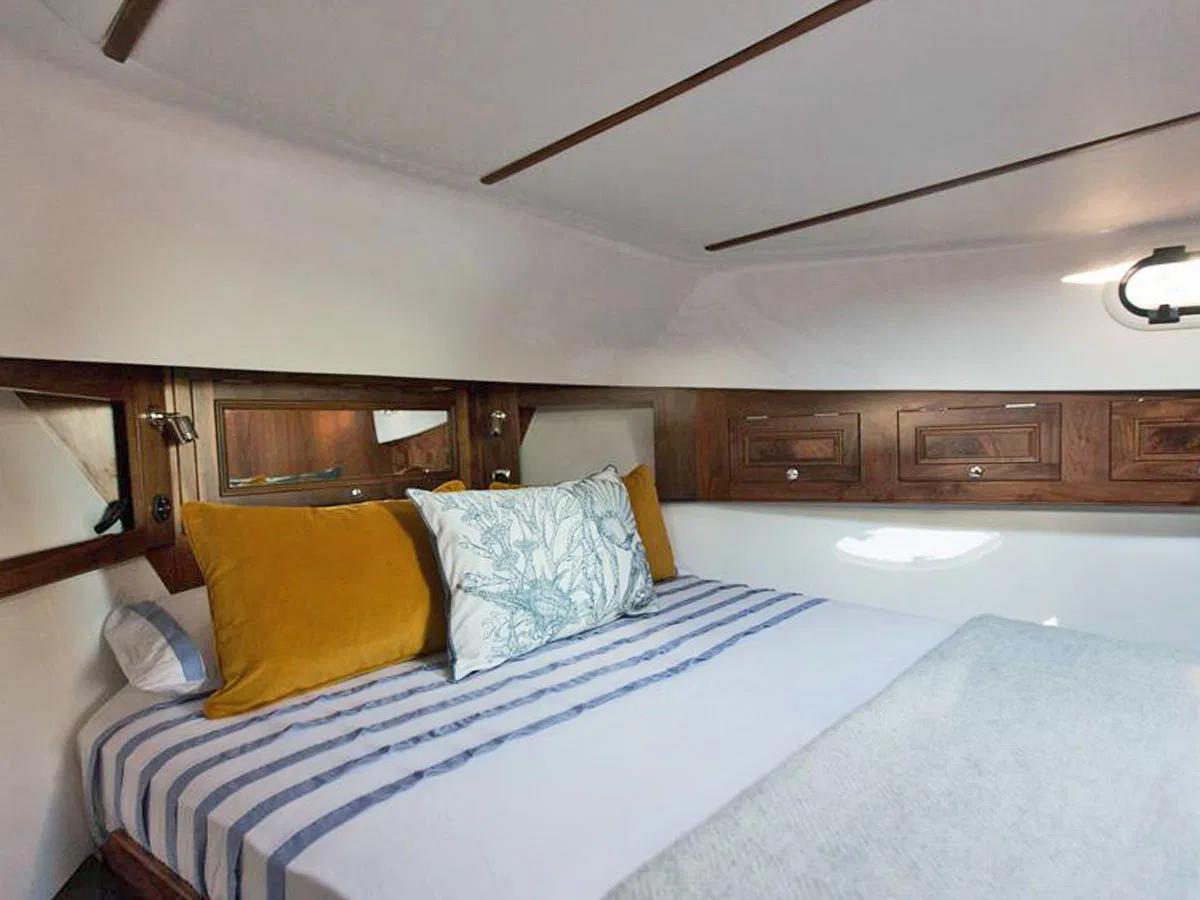

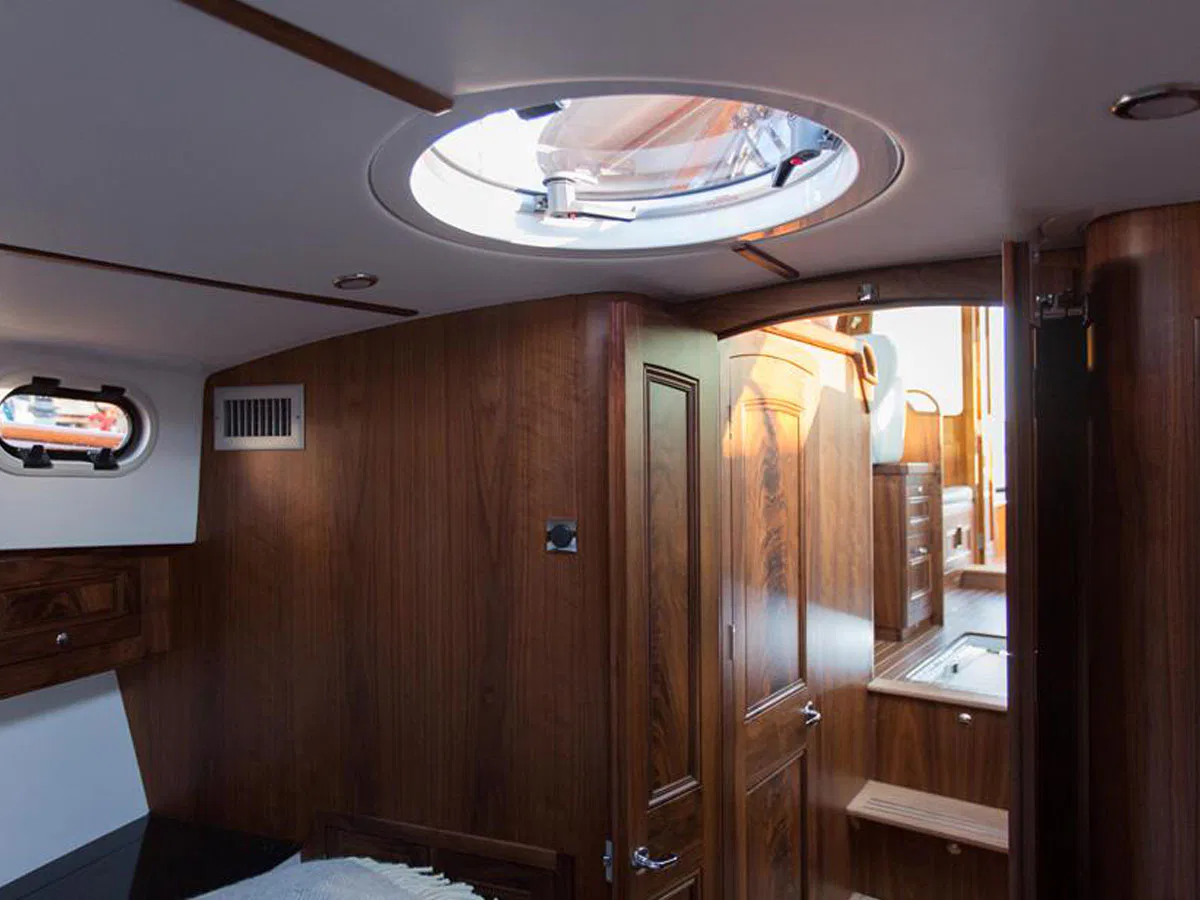

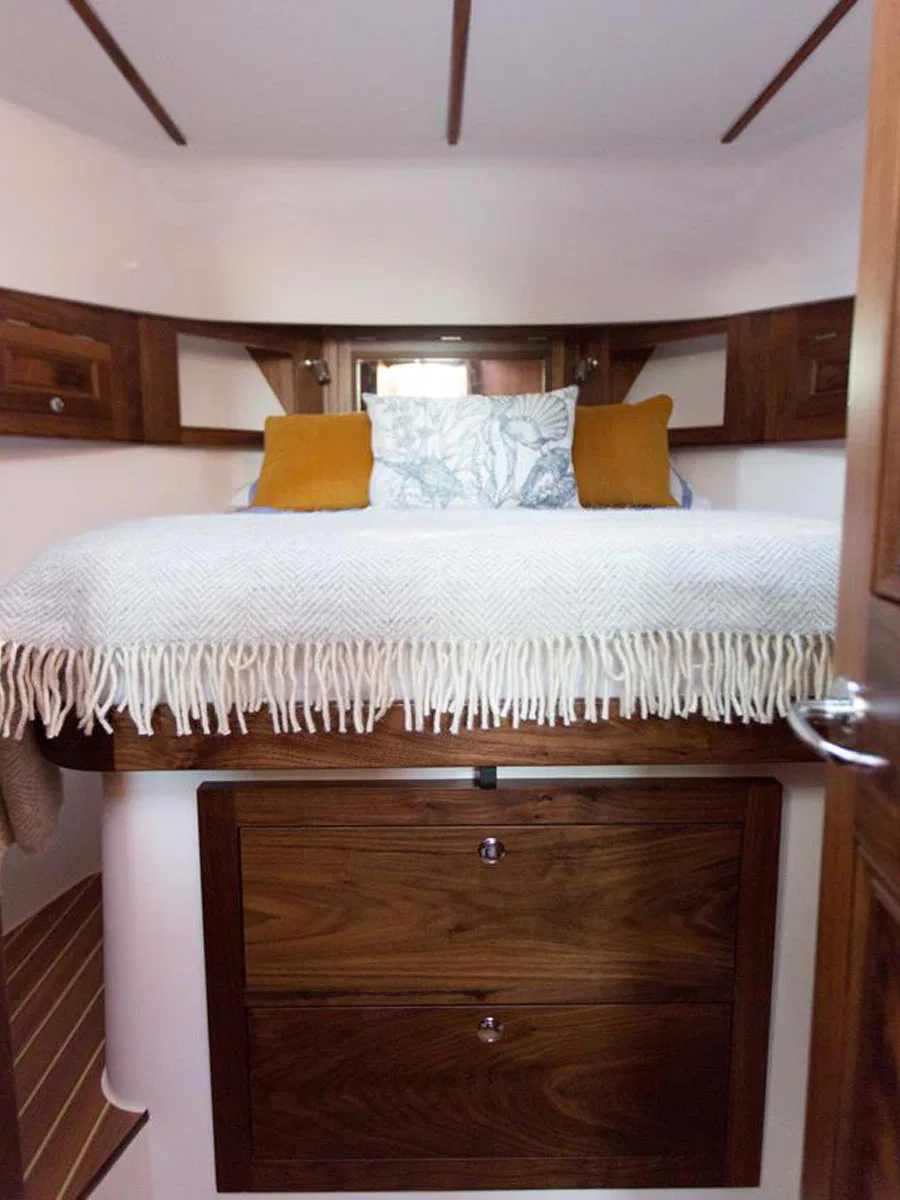

Forward Cabin
Private cabin with large double berth on center
Double spring split mattress with built-in 2” memory foam top, covered in Diamond Quilt and anti-bacterial mattress cover, 6” total height
Drawer and storage bin under hinged berth
Corian work tops outboard each side with storage space under
Storage lockers above berth each side
Hanging locker to port and locker to starboard
Overhead lighting
Reading lights
USB charge
240/110 Electrical sockets
(2) Opening portholes and a deck hatch for light and ventilation
Access to anchor locker forward of berth
Heating/AC

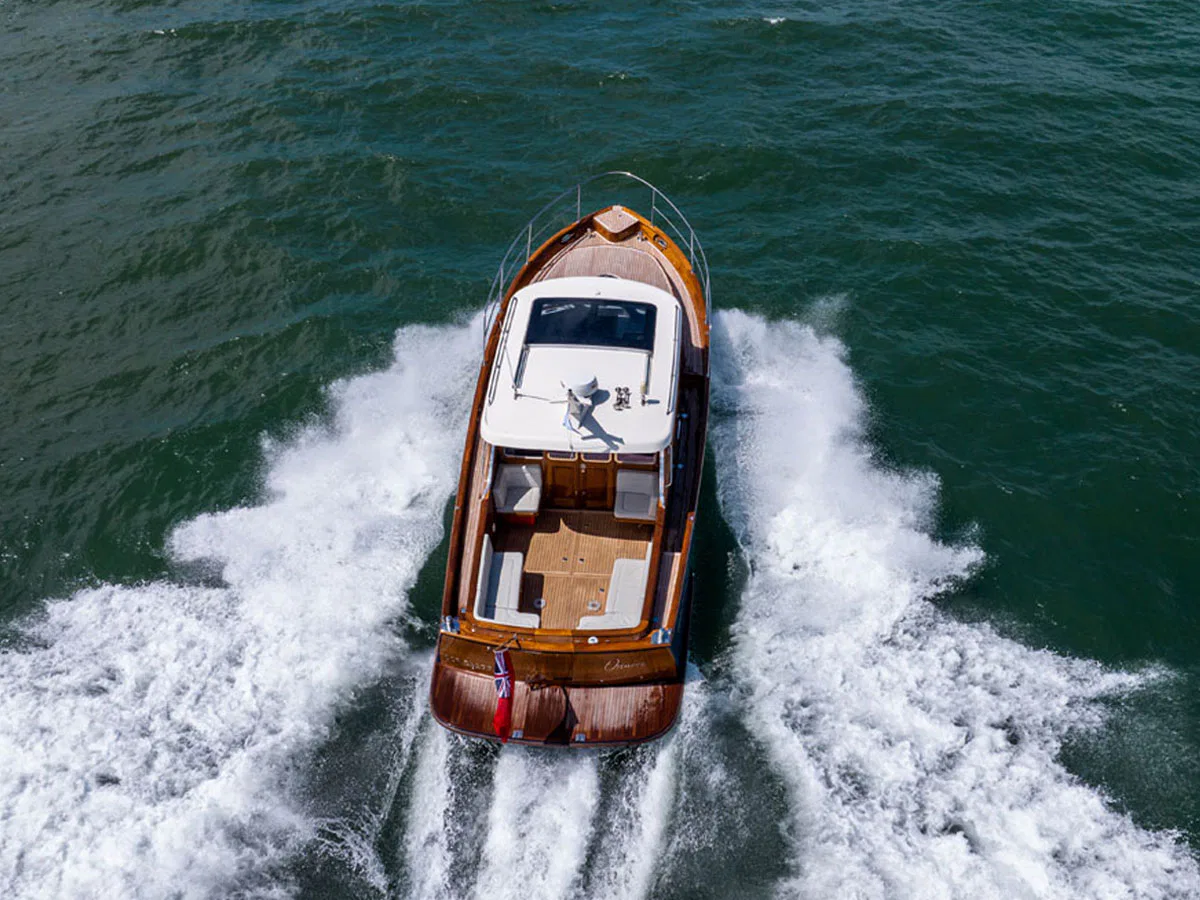

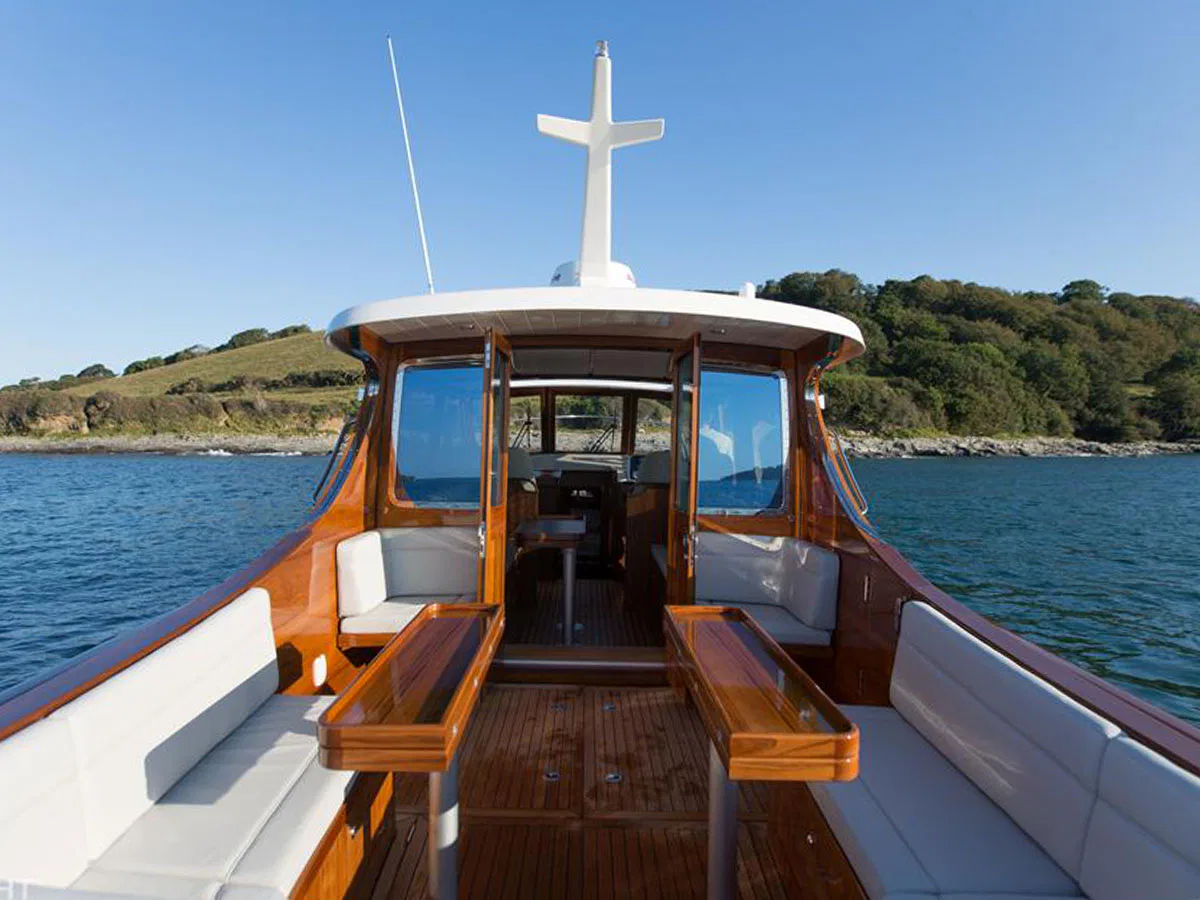

COCKPIT
Spacious cockpit at over 10’ long features convenient walk-through transom door leading to a large swim platform for easy swimming and boarding from dock.
Twin L-settees aft with waterproof upholstered cushions and twin varnished teak tables
Storage lockers under seating
Laid teak cockpit sole
Varnished teak coamings and vertical surfaces
Aft lazarette accessible through hatch in cockpit sole
Retractable stainless swim ladder
Dinghy and snap davits
Side door forward starboard side for easy access to side deck or fixed dock
Built-in boarding step in the hull each side to assist side boarding
Tonneau cockpit cover
Shower
HULL
Molded GRP hull with PVC foam core above waterline
Molded GRP structural matrix bonded to hull
Interior moldings for a clean, finished look
Large molded GRP swim platform with protective perimeter rub rail extending 8’ forward along hull each side
Flag blue gelcoat topsides, gold cove stripe, white boot stripe and blue bottom with epoxy barrier
DECK
Molded GRP deck with foam core and varnished teak veneers on cabin sides, pilot house, cockpit coamings and inner bulwark
Varnished teal cap rails

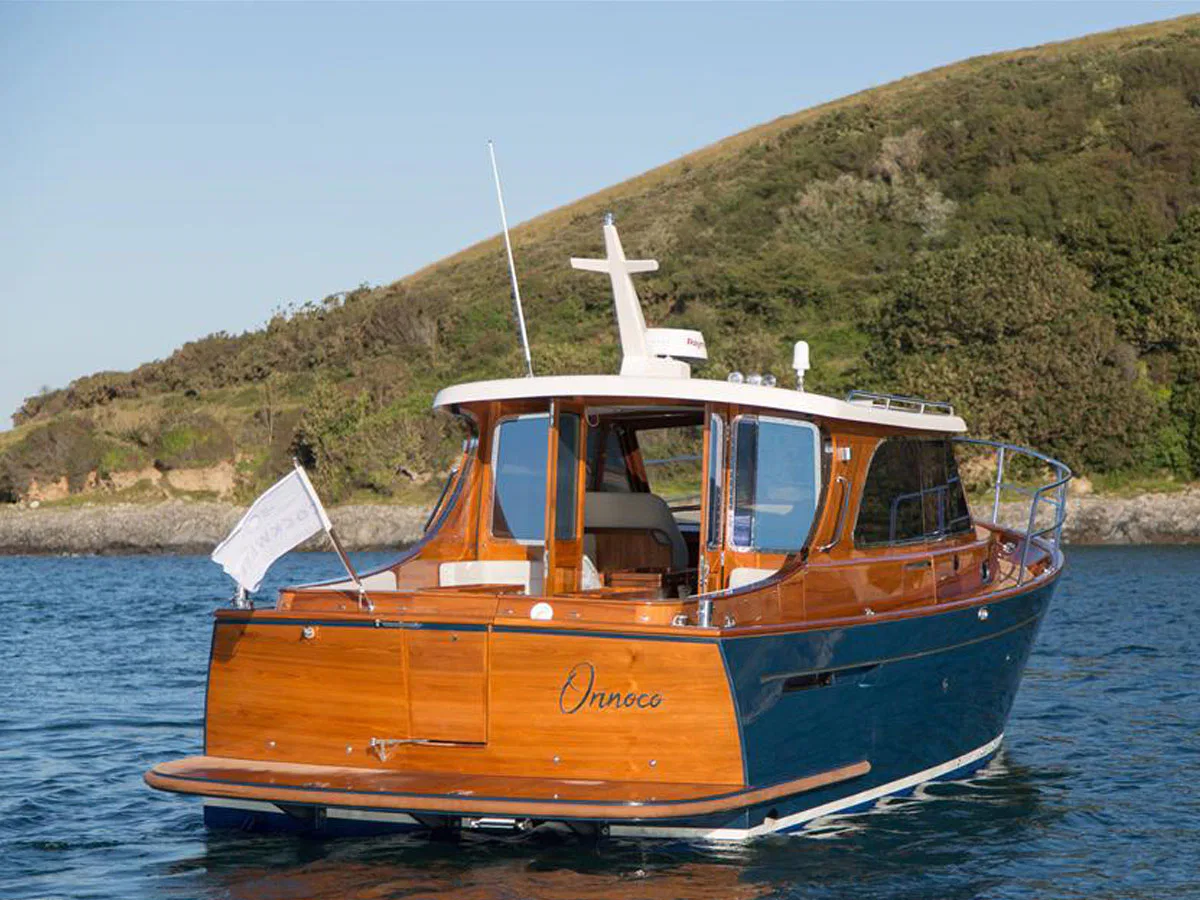

Varnished teak transom
All exterior teak completely stripped and re-built with 10 coats of two-part epoxy base and finish varnish May 2024

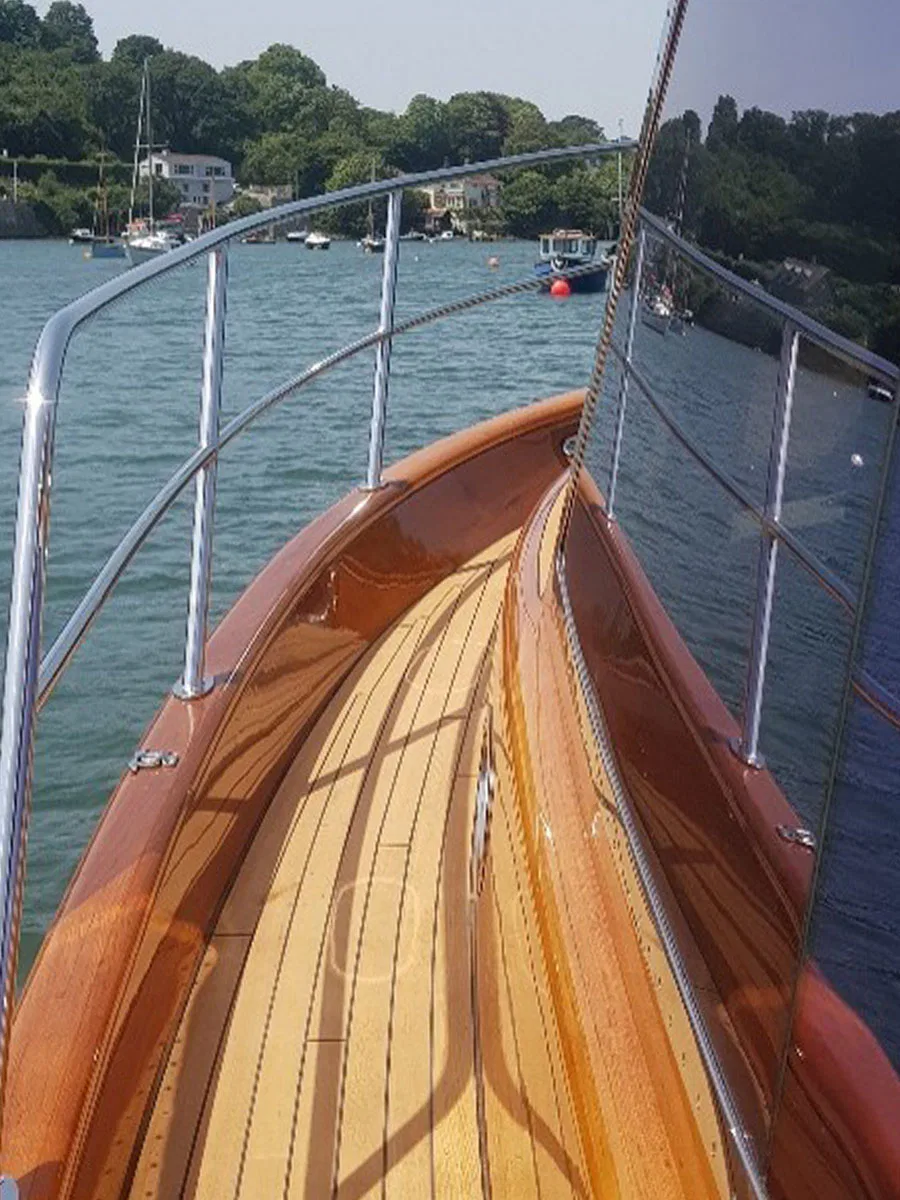

Laid teak side decks and swim platform
Quick Prince electric windlass recessed into foredeck with hatch cover
Windlass controls on foredeck and at helm
Double anchor rollers built into stainless stem fitting
Bruce 33 lb/15 kg stainless steel anchor with 50’ chain rode
Stainless double bow rail leading aft to midships
Handrails on pilothouse leading aft to cockpit
(4) Hawes cleats for bow and spring lines
(2) Fixed stainless bollard cleats with chocks aft
(4) Folding fender eyes
Twin horn
Stainless ensign staff
MECHANICAL SYSTEMS
Engine, Drive Train, Controls and Steering

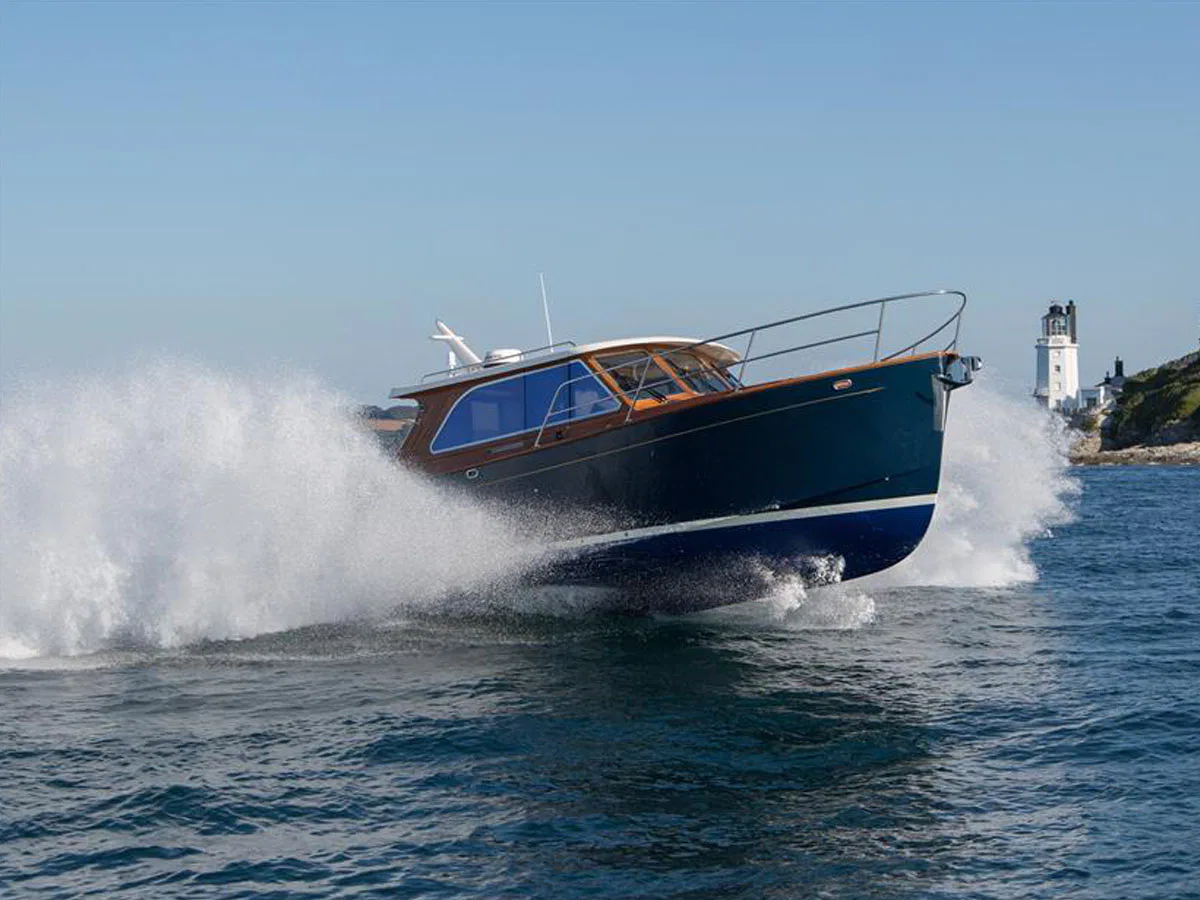

(2) Nanni T8V 350 hp diesel engines, cruise 25 knots, max 31 knots – only 130 hours since new
Aventics joystick controls
Bow and stern thrusters
Engine starting key switch on the helm console
(2) Dedicated AGM start batteries – one for each engine
Stainless steel prop shafts supported by bronze p-brackets in partial hull tunnels
Composite stern tubes with water cooled bearings and Tides Marine seals
Custom designed bronze propellers for maximum performance
Ambassador rope cutters
Hydraulic steering with bronze rudders
Zipwake trim tabs
Engine Exhaust, Fuel, and Cooling Systems
Separate wet exhaust system for each engine
Water trap exhaust silencers
Two aluminum fuel tanks, upgraded 265 gallons total connected via a balance pipe
Racor fuel filters/water separator
Marine grade ISO flexible fuel system piping
Vetus raw water intake strainers
Engine Space
Engine space fully insulated
Large twin hatches through forward cockpit sole for access to engine space
Hatch openings aided by gas struts
Automatic fire suppression system
Engine room camera
Fresh Water System
(2) Vetus water tanks, 115 gallons total
Fresh water pump
8-gallon Quick Nautic water heater connected to engine and AC shore power
Hot/cold deck shower at transom
Black and Gray Water
Tecma electric flush toilet with direct discharge to holding tank
Vetus 16 gal black water holding tank with direct overboard or deck pump-out
Galley and head sinks fitted with gravity drain
Whale electric shower sump pump
Bilge
(2) Whale automatic bilge pumps forward and aft with bilge alarm
Emergency manual bilge pump in cockpit
Self-draining cockpit as per RCD requirements
General
Espar diesel heater
Air conditioning
Onboard WiFi
ELECTRICAL SYSTEMS
12 Volt DC/240 Volt AC electrical system
Custom Empirbus 12V DC control system with digital switching at helm display
