SPECS
- Builder: Alerion Yachts
- Keel: Fin Keel
MEASUREMENTS
- Length Overall: 33.00 ft
- Length Waterline: 26.33 ft
- Max Draft: 5' 0"
- Ballast Weight Measure: 3300.00 lb
- Beam Measure: 9' 3"
- Range Measure: 115.08 mi
ENGINE(S)
- Total Power: 20|horsepower
- Engine Brand: Yanmar
- Year Built: 2011
- Engine Model: 3YM20C
- Engine Type: Inboard
- Engine/Fuel Type: Diesel
- Engine Power: 20 hp
TANKS
- Fresh Water Tanks: 1 (11 Gallons)
- Fuel Tanks: 1 (18 Gallons)
Accommodations
- Number of cabins: 1
- Number of heads: 1
HULL AND DECK STRUCTURE
- Infusion Molded (SCRIMP) GRP hull with biaxial and unidirectional E-glass reinforcing fabrics, end grain balsa core and vinylester resin gelcoat reinforcing layer
- Keel floors, keel sump, engine bed, mast step and longitudinal stringers are integrally molded with the hull during the SCRIMP process
- Resin infused (SCRIMP) GRP deck with biaxial reinforcing fabrics and end grain balsa core
- White gelcoat deck with molded beige nonskid
- Flange type deck/hull joint bonded with Plexus MA550 adhesive (ABS approved)
- Fin keel with integral lead bulb for low center of gravity, bolted to molded keel sump with 1" diameter 304 grade stainless steel bolts
- Marine grade plywood structural bulkheads bonded to hull and deck
- Stainless steel headstay tang integral with stemhead fitting
- Stainless steel main chainplates thru-bolted to interior structure
- Stainless steel rudder shaft with composite balanced elliptical rudder and low maintenance self-aligning bearings

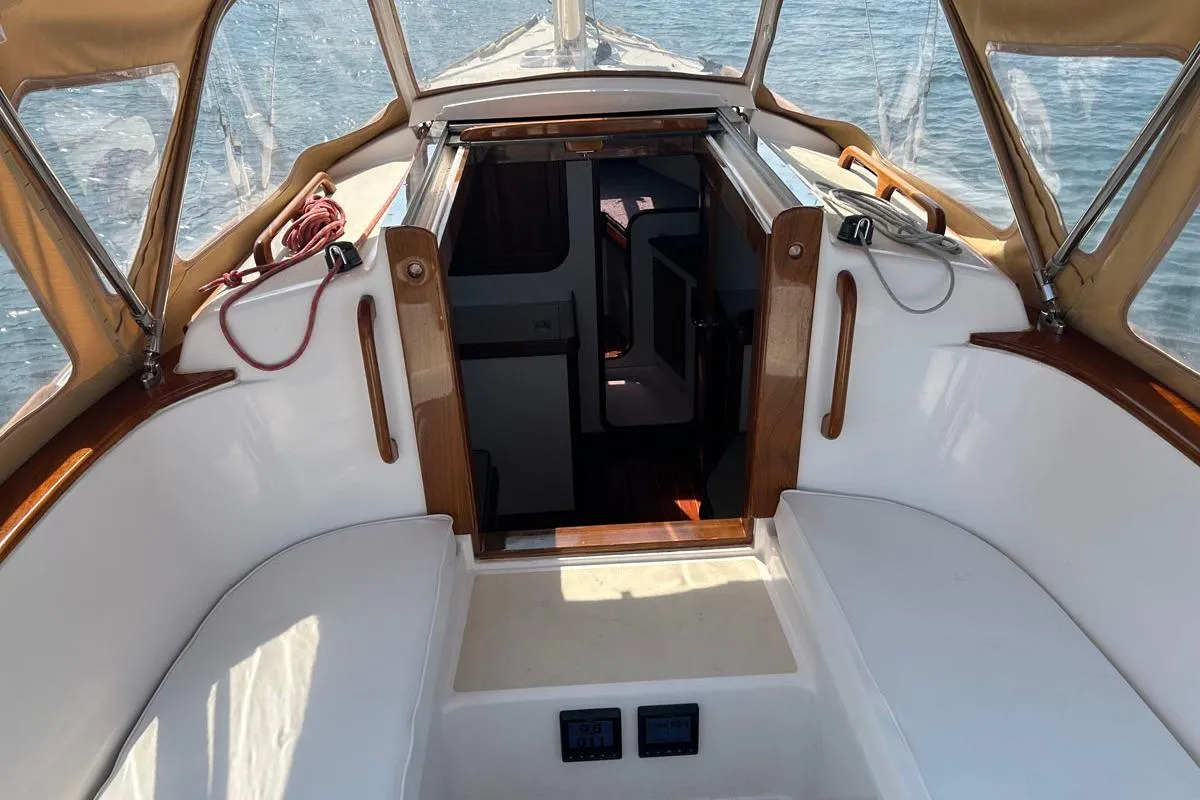

DECK AND COCKPIT DETAILS
- (2) Lewmar deck hatches over forward cabin and head
- (4) Stainless steel oval portlights
- Custom stainless steel stemhead fitting
- Full length varnished teak toe rail
- Varnished teak handrails, nosing, cockpit coaming and trim
- (4) 10" Stainless mooring cleats
- (2) 8" Stainless steel midship springline cleats
- Companionway sliding hatch with seahood and washboards
- Molded port/starboard cockpit hatches and aft lazarette hatch
- Teak cockpit sole

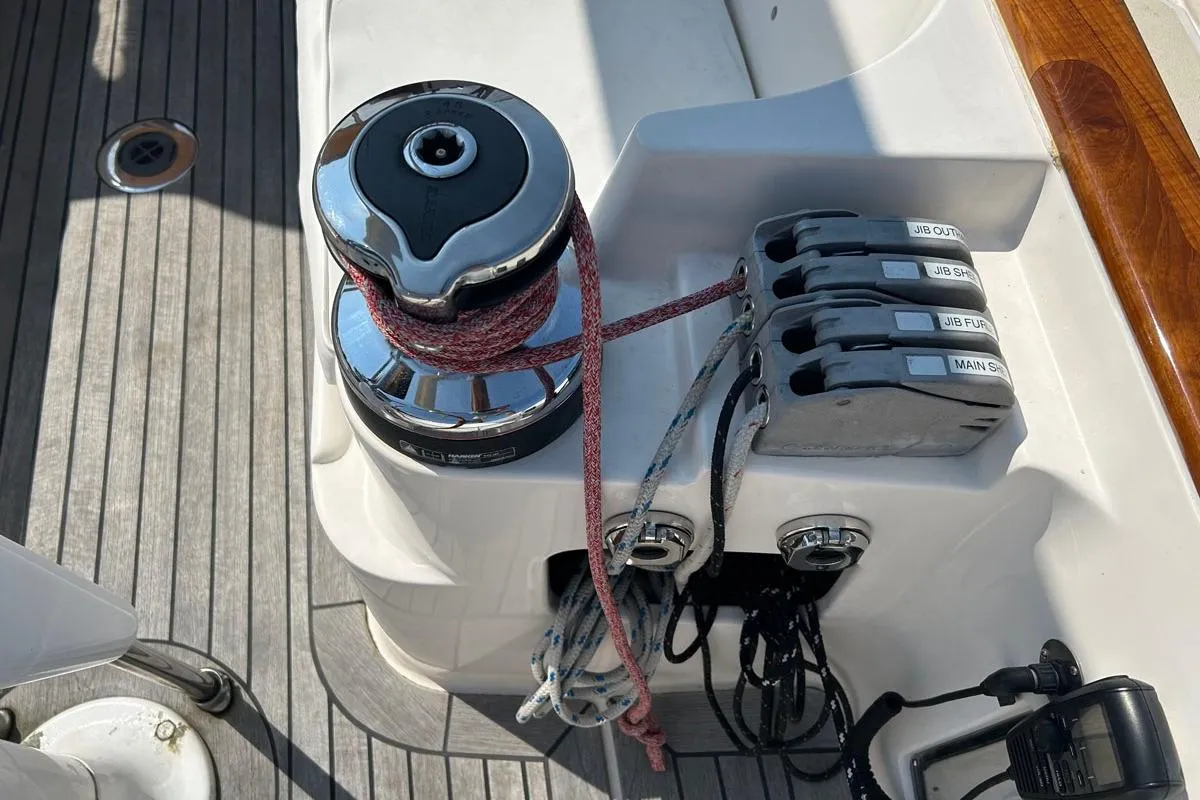

- (2) Harken 46 two-speed electric winches at helm with multiple jammers for all sailing functions
- All halyards, sheets, reefing lines and traveler control lines are lead below deck to helm winches for easy operation
- Dedicated rope storage cubbies under each winch to keep things tidy

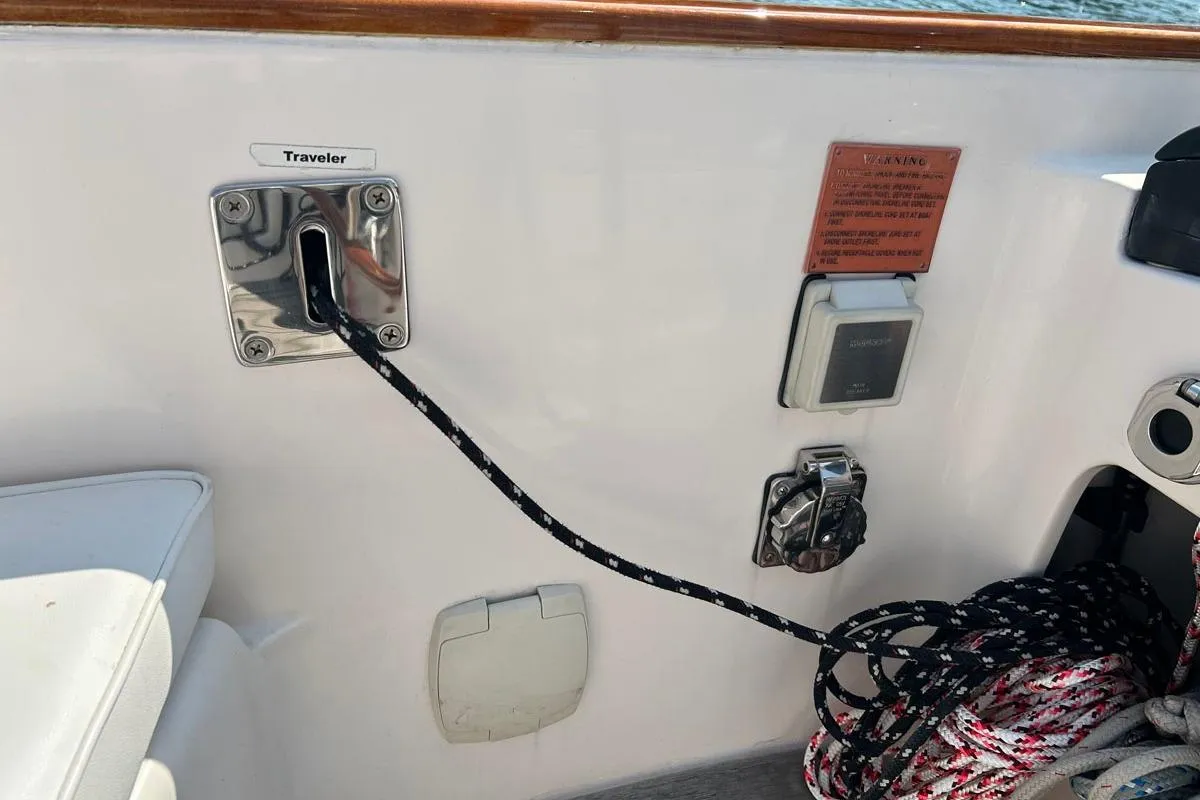

- Harken 6:1 Mainsheet traveler track with control lines at helm
- Edson pedestal steering with 34" stainless steel wheel finished with varnished teak rim
- Ritchie binnacle-mounted compass
- Self-draining cockpit with port and starboard drains
- Full length cockpit seats with cushions
- Removable varnished teal cockpit table
- Dodger (beige) with roll-up front
- Deck fills for fuel and water tanks
- Holding tank pump out deck plate
MAST, RIGGING AND SAILS
- Hall Spars double-spreader carbon mast
- Forespar Leisure furl mainsail boom system (2019)
- "Moondust" Awlgrip finish on boom and mast

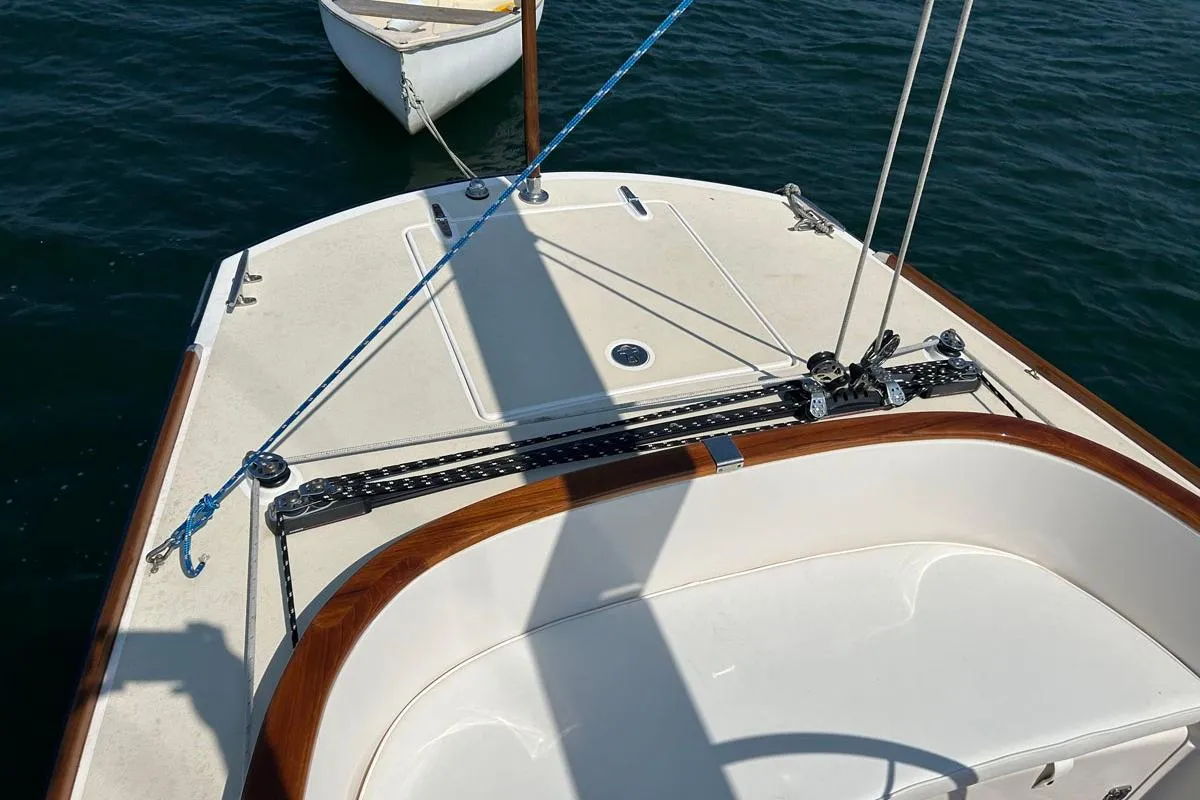

- Hoyt jib boom by Hall Spars
- Harken jib furler
- Navtec continuous Nitronic 50 rod rigging
- Steaming and masthead anchor lights
- Forespar "Quik Vang" boom vang, Moondust finish
- North NorDac full batten furling mainsail (2019)
- North Norlam jib
INTERIOR
Interior Decor
- Removable plywood/vinyl overhead panels with teak trim
- Teak hull ceilings in main cabin
- Formica plywood bulkheads with teak trim
- Formica locker interiors/bunk tops and shelves
- Laminated teak door frames
- Solid teak doors with plywood panels
- Varnished teak and holly cabin sole
- Interior cushions for V-berth, settees and backrests

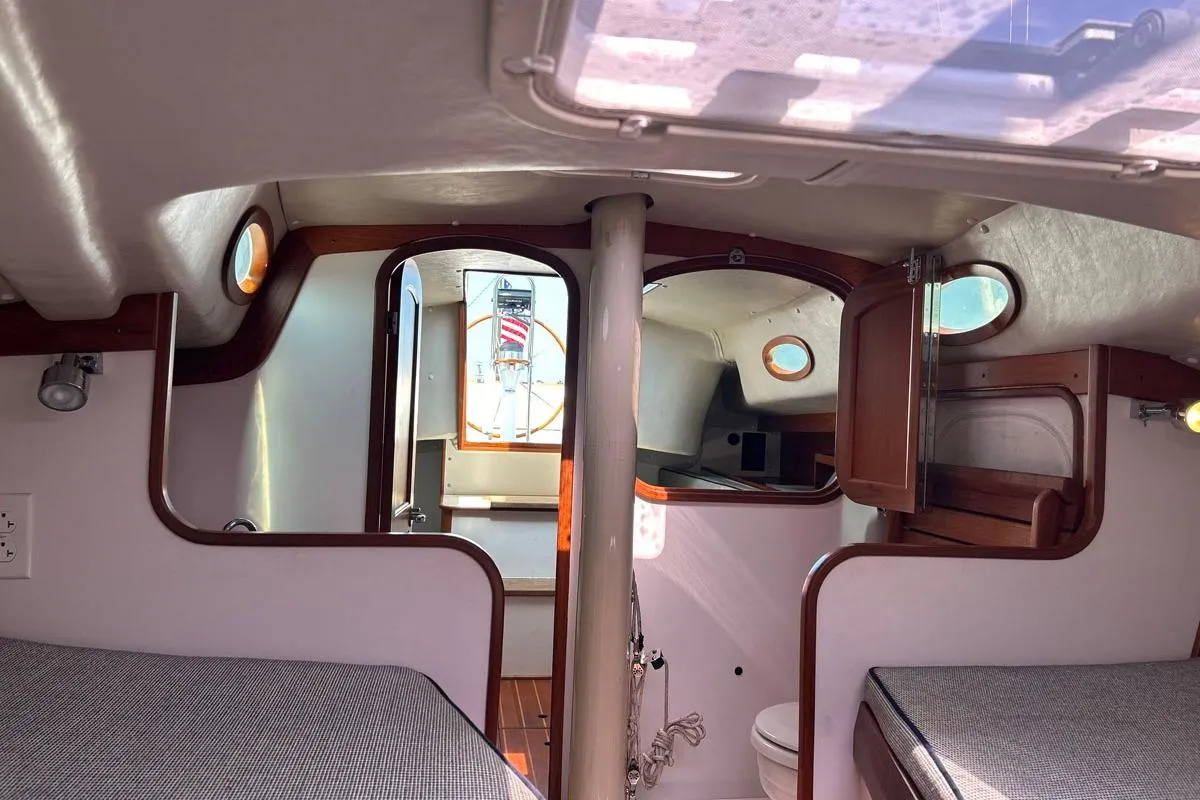

Forward Cabin
- V-berth with storage under berth
- Deck hatch
- 4" Laminated foam cushions
- Overhead light
- Vinyl head liner

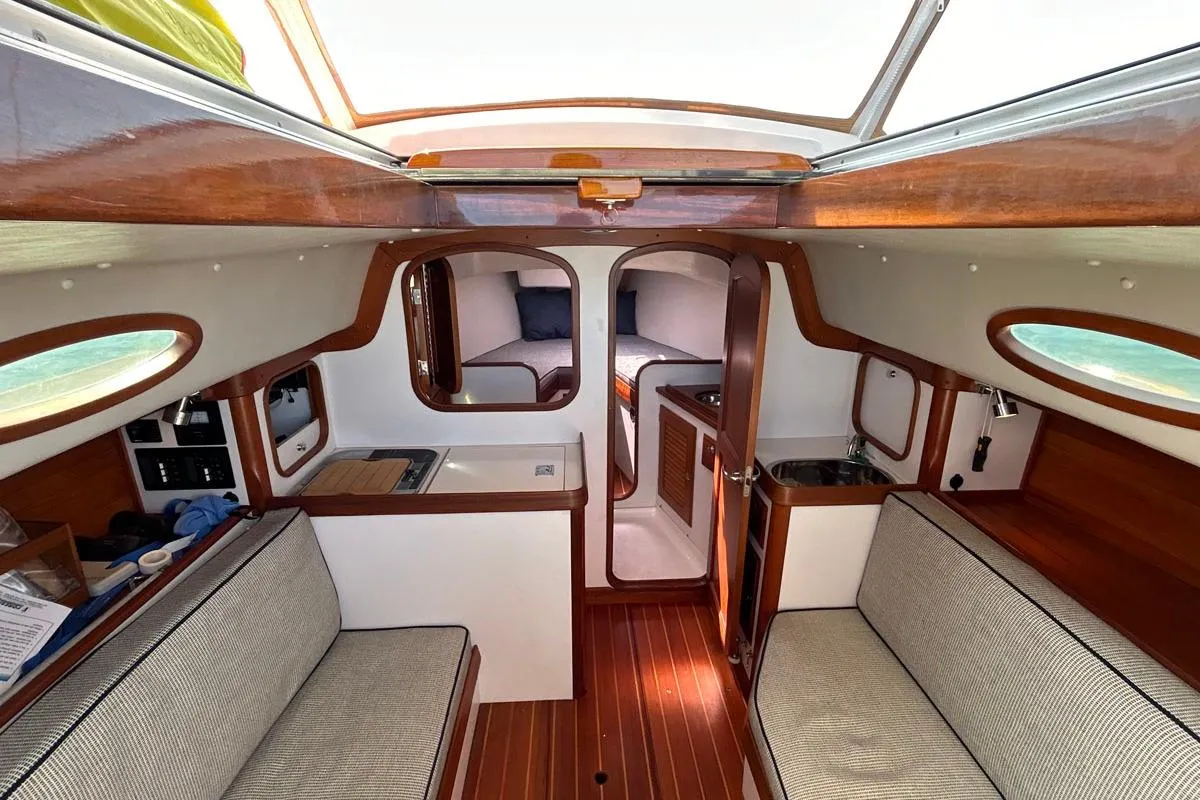

Main Cabin
- Full length settees port and starboard
- Shelves outboard of settees
- Electrical panel on port side settee
- Teak bi-fold doors opening into forward cabin
Galley
- Storage lockers outboard
- Origo alcohol stove
- Isotherm DI 40 DC refrigerator (top loading)
- Formica counter tops
- Stainless steel sink
Head Compartment
- White molded GRP pan
- Raritan PHII marine toilet with Y-valve and drop-down teak seat cover
- Stainless steel sink
- Storage lockers outboard
- Locker under vanity
- Mirror
- Deck hatch
ELECTRICAL
- 12 Volt DC system designed to ABYC
- All wiring is tinned copper to inhibit corrosion and is coded for ease of identification
- DC master panel with analog meter and magnetic circuit breakers
- Battery switch
- (2) 4D gel cell batteries
- Battery charger
- 110 volt shore power inlet with 30 amp shore cord
- (4) Halogen reading lights
- Overhead lighting in galley and head
- Running lights mounted at stemhead
- Stern light mounted on aft deck
- Garmin 9” chartplotter (2019)
- Garmin autopilot (2019)
- Tick Tack sailing instruments
MECHANICAL
- 20 HP Yanmar 3YM20C engine with sail drive and waterlock muffler
- 2-Blade folding propeller
- GRP engine bed and oil pan
- Single lever engine control with neutral safety switch
- 18 US Gallon polypropylene fuel tank
- 16 US Gallon PVC freshwater tank
- 11 US Gallon PVC holding tank
ADDITIONAL
- Fortress anchor with rode and chain
- (5) Life jackets
- (2) Harken winch handles
- 48" Teak ensign staff
- Cockpit cover
- (3) Fenders and docklines
- Owner's manual
- Equipment manuals (Owner’s manuals for builder-installed equipment, pumps, winches etc.)
EXCLUSIONS
The owner’s personal effects are excluded from the sale.
